Chapter 05 — Tempo¶

Grafana Tempo is a large-scale distributed tracing storage system that stores traces on object storage (S3) to provide effectively unlimited retention at minimal cost. It integrates natively with Prometheus exemplars and Loki TraceIDs to create observability correlation across the three pillars.

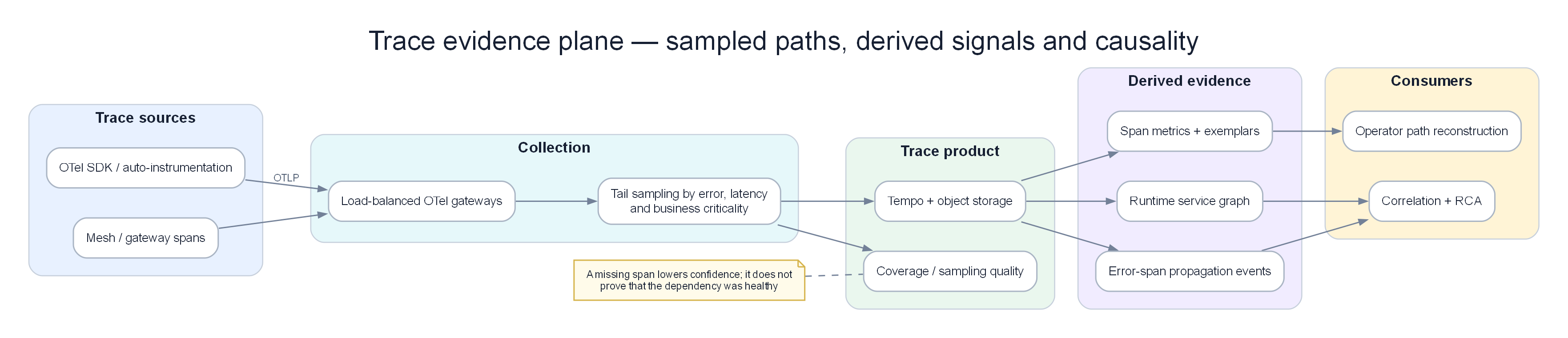

Trace evidence and error propagation

Poster: reconstruct the critical path, follow span-error propagation, and carry sampling coverage into confidence.

Prerequisites¶

01 — Observability — trace concepts, sampling
02 — OpenTelemetry — collecting and sampling traces
04 — Loki — parallel distributed architecture design patterns

02 — OpenTelemetry — tail sampling before data reaches Tempo
03 — Prometheus — exemplars linking metrics to Tempo traces
11 — Root Cause Analysis — traces as input to RCA

Next Reading¶

After this chapter, continue to 06 — Telemetry Data Plane (normalize / enrich / store / feature), then 07 — Kafka.

1. Why Tempo?¶

KEY IDEA

Tempo does not try to be “Elasticsearch for traces”. It chooses a store-first, find-by-id later philosophy: accept not indexing every attribute in exchange for storing everything cheaply on object storage. In AIOps, that matches reality — most paths into a trace are a trace_id from a metric exemplar or a log, not full-text search on arbitrary span attributes.

Tip

When should you choose Tempo from day one? When the stack already has Grafana + Prometheus + Loki, and you need to correlate the three signals with one trace_id. Do not choose Tempo if you need Jaeger-UI-style ad-hoc tag search for every attribute without investing in an index / TraceQL pipeline.

The Distributed Tracing Problem at Scale¶

Predecessor systems such as Jaeger and Zipkin store traces in databases: - Jaeger → Cassandra or Elasticsearch - Zipkin → MySQL, Cassandra, Elasticsearch

Problem: At 100K requests/second with an average of 15 spans per trace:

100,000 req/s × 15 spans × 2KB/span = 3GB/s of trace data
3GB/s × 86400 seconds = ~260TB/day

Storing 260TB/day in Cassandra or Elasticsearch becomes prohibitively expensive.

Tempo's Solution¶

Store traces on object storage (S3) as Parquet files. No index. No database. Fully object-storage based.

Tempo’s architectural principle: “Just store it. We’ll find it later.”

Trade-offs:

✅ Unlimited scale at extremely low S3 cost ($0.023/GB/month)
✅ No need to operate complex Cassandra/Elasticsearch clusters
✅ Native Grafana integration
❌ Cannot search by arbitrary span attributes (lookup by TraceID only by default)
❌ Tag-based search requires a separate index (TraceQL pipelines / Tempo tag index)

When TraceID lookup is enough: For most AIOps use cases, you reach a trace via: - A Prometheus exemplar (from a metric spike peak → TraceID) - A Loki log entry (from an error log → TraceID in the log body) - Alert annotation (from alert → TraceID of the failing request)

You rarely need to search by an arbitrary span attribute in production AIOps.

When is a Trace “enough” — and when is it not?¶

Need	TraceID lookup (Tempo default)	Needs TraceQL / index
RCA from alert with exemplar	✅ Enough	No
Error log → `trace_id` in body	✅ Enough	No
“Find every payment timeout request in 1h”	❌	✅ Needed
“Find order_id = X across services”	❌	✅ (attribute must be indexed/searchable)
Service graph / RED metrics	✅ Via SpanMetrics	Not required

Warning

If the SRE team frequently needs to “find by customer_id / order_id” in Tempo without an entry path from logs/metrics, the observability entry point is designed wrong. Inject trace_id into structured logs and put business IDs in the log body + carefully controlled span attributes — do not turn Tempo into a full-text search engine.

2. Tempo vs Jaeger vs AWS X-Ray¶

Comparison dimension	Tempo	Jaeger	AWS X-Ray
Storage	S3 (object store)	Cassandra / Elasticsearch	AWS managed
Search features	TraceID + TraceQL (tag search via index)	Full tag search	TraceID + basic filters
Scalability	Unlimited (S3)	Limited by database cluster	Unlimited (managed)
Cost (for 10M spans/day)	~$5/month S3	~$500/month Cassandra	~$50/month
Setup	Medium	Medium–High	Low (SDK only)
AWS integration	Manual (OTel)	Manual (OTel)	Native (AWS SDK)
Grafana integration	✅ Native	✅ Via plugin	✅ Via plugin
Query language	TraceQL	JaegerQL	Basic filters
Multi-tenancy	✅ Supported	❌ Limited	❌ Per account
Exemplar correlation	✅ Native with Prometheus	❌ Manual	❌
License	AGPLv3	Apache 2.0	AWS proprietary

Recommendation:

New project + Grafana stack: Tempo (native integration, optimal S3 cost)
Existing Jaeger with required tag search: Jaeger
Small all-AWS systems: X-Ray (but vendor lock-in)
Large enterprise: Tempo (best scale at lowest cost)

3. Internal Architecture¶

KEY IDEA

Tempo fully separates the write path (distributor → ingester → S3) and read path (query-frontend → querier → S3/cache). This is the same “ingester owns recent data, object storage owns history” pattern as Loki — allowing write and read to scale on different bottleneck signals.

graph TD
    subgraph Write["Write Path"]
        DIST[Distributor\nvalidate · hash]
        ING1[Ingester 1\nin-memory blocks]
        ING2[Ingester 2]
        ING3[Ingester 3]
        WAL[WAL\n/var/tempo/wal]
    end

    subgraph Compact["Background"]
        COMP[Compactor\nmerge · deduplicate\nretention]
    end

    subgraph Read["Read Path"]
        QF[Query Frontend\ncache · fan-out]
        QUER[Querier\nfetch + merge]
        CACHE[Block Cache\nMemcached]
    end

    subgraph Storage["Object Storage"]
        S3[AWS S3\n.parquet blocks]
        INDEX[Tag Index\nglobal search]
    end

    SOURCE[OTel Collector\ngateway] -->|OTLP gRPC :4317| DIST
    DIST -->|hash on TraceID mod 3| ING1
    DIST -->|hash on TraceID mod 3| ING2
    DIST -->|hash on TraceID mod 3| ING3

    ING1 --- WAL
    ING1 -->|flush every 30min| S3
    ING2 -->|flush| S3
    ING3 -->|flush| S3

    ING1 -->|write tag index| INDEX
    COMP -->|merge small blocks| S3
    COMP -->|rebuild index| INDEX

    GRAFANA[Grafana] -->|Get trace by ID or TraceQL| QF
    QF -->|in-memory trace| ING1
    QF -->|S3 lookup| QUER
    QUER -->|block cache hit| CACHE
    QUER -->|block cache miss| S3
    QUER -->|merge| QF
    QF -->|return trace| GRAFANA

    style Write fill:#dbeafe,color:#1e293b
    style Read fill:#dcfce7,color:#1e293b
    style Storage fill:#f3e8ff,color:#1e293b
    style Compact fill:#ffedd5,color:#1e293b

Key Endpoints¶

Endpoint	Protocol	Port	Description
`/api/traces/{traceID}`	HTTP	3200	Get trace by ID
`/api/search`	HTTP	3200	Tag search with TraceQL
`/api/search/tags`	HTTP	3200	List searchable tag names
`/api/search/tag/{tag}/values`	HTTP	3200	List values for a specific tag
`/api/v2/search`	HTTP	3200	TraceQL search (v2)
OTLP gRPC receive	gRPC	4317	Receive traces from OTel Collector
Tempo internal	gRPC	9095	Internal component messaging
Memberlist	UDP	7946	Gossip ring
`/metrics`	HTTP	3200	Prometheus metrics
`/ready`	HTTP	3200	Readiness check

4. Data Flow — Write Path¶

sequenceDiagram
    participant OTel as OTel Collector Gateway
    participant DIST as Distributor
    participant ING as Ingester (×3)
    participant WAL as WAL (/var/tempo/wal)
    participant S3 as AWS S3

    OTel->>DIST: OTLP gRPC ExportRequest (batch of spans)
    DIST->>DIST: Validate spans (max size, attribute count)
    DIST->>DIST: Hash TraceID → determine ingester shard
    DIST->>ING: Forward spans (replication_factor=3: to all 3 ingesters)
    ING->>WAL: Append spans to WAL (durability)
    ING->>ING: Buffer on memory block (indexed by TraceID)
    ING-->>DIST: Quorum ack (2/3)
    DIST-->>OTel: Confirm complete

    Note over ING: Every 30 minutes (ingester.max_block_duration)...
    ING->>ING: Close current block, stop accepting writes into it
    ING->>S3: Upload block as .parquet files
    ING->>S3: Write global index info (TraceID → block location)
    ING->>WAL: Truncate WAL data for the uploaded block

Ingester Block Format¶

Tempo stores traces in blocks. Each block covers a time window:

/var/tempo/
├── wal/
│   ├── 00000001    ← WAL segments
│   └── 00000002
└── blocks/
    ├── 0193abc1.../  ← Block (ULID identity)
    │   ├── meta.json     ← Block metadata (time range, trace count, size)
    │   ├── data.parquet  ← Trace data (Parquet columnar format)
    │   └── bloom-filter  ← Bloom filter for fast TraceID existence checks
    └── 0193def2.../

Bloom filter: Before downloading a Parquet block from S3, the querier quickly checks a bloom filter (a probabilistic data structure) to determine whether the TraceID is likely in that block. This avoids unnecessary S3 downloads.

Tip

Bloom filters never false-negative (if they say “not present”, it is definitely not present), but can false-positive (say “may be present” when it is not). Lower FP rate → larger bloom filter → more memory/storage but fewer wasted S3 GETs. Production often chooses 0.01 or 0.005.

5. Data Flow — Read Path¶

sequenceDiagram
    participant G as Grafana
    participant QF as Query Frontend
    participant Q as Querier
    participant ING as Ingesters
    participant S3 as AWS S3
    participant MC as Memcached

    G->>QF: GET /api/traces/4bf92f3577b34da6
    QF->>Q: Forward request

    par Find recently written traces (on ingesters)
        Q->>ING: Search in-memory buffered blocks by TraceID
        ING-->>Q: Return spans from current block (if recently written)
    and Find older traces (on S3)
        Q->>MC: Check Bloom filter cache?
        MC-->>Q: Bloom filter confirms (may exist in block 0193abc1)
        Q->>S3: Load block metadata
        Q->>S3: Fetch specific spans by TraceID from Parquet
        S3-->>Q: Return trace spans
    end

    Q->>Q: Merge spans from ingesters + S3
    Q->>Q: Sort by timestamp
    Q-->>QF: Return complete Trace
    QF-->>G: Return Trace as OTLP JSON

6. Trace Storage Format¶

Parquet Column Layout¶

Tempo uses Apache Parquet (columnar storage) for trace data:

Columns of data.parquet:
├── TraceID (byte_array)          ← Sorted for binary search
├── RootSpanName (string)
├── RootServiceName (string)
├── StartTimeUnixNano (int64)
├── DurationNano (int64)          ← For latency-based queries
├── Spans[]
│   ├── SpanID (byte_array)
│   ├── ParentSpanID (byte_array)
│   ├── Name (string)
│   ├── Kind (int)                ← Server, Client, Internal, etc.
│   ├── StartTimeUnixNano (int64)
│   ├── DurationNano (int64)
│   ├── StatusCode (int)
│   ├── StatusMessage (string)
│   └── Attributes (map<string, AnyValue>)
└── Resource Attributes (map<string, AnyValue>)

Why Parquet:

Columnar storage: Fast filter on StatusCode == ERROR without reading other columns
Compression: Parquet with Snappy compresses trace data at roughly 5–10:1
S3 Select: Column filtering can happen server-side on S3, reducing transfer bandwidth

Vparquet3 (Tempo’s custom format)¶

Tempo uses a custom Parquet schema called vparquet3:

# Enable in tempo config
storage:
  trace:
    backend: s3
    block:
      version: vparquet3    # Required for TraceQL
      bloom_filter_false_positive: 0.01   # Accept 1% false positive rate for bloom filters
      bloom_filter_shard_size_bytes: 100kb

7. TraceQL Query Language¶

TraceQL is Tempo’s query language for searching traces by span attributes.

Note: TraceQL search requires data in vparquet3 format AND a configured local-blocks pipeline or tag index. Direct TraceID lookup does not need these.

TraceQL Syntax¶

# Basic: find all traces with an error-status span
{ status = error }

# Traces from a specific service with high latency
{ resource.service.name = "payment-service" && duration > 2s }

# Traces with a specific HTTP status code
{ span.http.status_code = 500 }

# Traces with error span AND payment service
{ status = error && resource.service.name = "payment-service" }

# Traces with a specific attribute value
{ span.order.id = "ord-12345" }

# Aggregate: count traces by service
{ resource.service.name =~ ".*" } | by(resource.service.name) | count() > 0

# Latency search (slow traces)
{ duration > 5s }

# Combined: errors in payment service slower than 3s
{
  resource.service.name = "payment-service"
  && status = error
  && duration > 3s
}

Enabling Tag-Based Search (Pipeline)¶

# tempo-config.yaml
pipeline:
  # Enable structured TraceQL search
  search:
    enabled: true

storage:
  trace:
    backend: s3
    local_blocks:
      path: /var/tempo/blocks
      max_stale_cut: 15m
      flush_to_storage: true

8. Metrics from Traces (SpanMetrics)¶

SpanMetrics is an OTel Collector processor that automatically generates RED metrics from trace data. This is highly valuable for an AIOps pipeline.

Why SpanMetrics?¶

Instead of instrumenting every service to emit latency/error metrics, SpanMetrics automatically generates these metrics from span information:

Traces → SpanMetrics Processor → Prometheus metrics

Automatically generated metrics:
- traces_spanmetrics_calls_total (counter, by service/operation/status)
- traces_spanmetrics_duration_milliseconds (histogram, by service/operation)

OTel Collector SpanMetrics Configuration¶

connectors:
  spanmetrics:
    histogram:
      explicit:
        buckets: [5ms, 10ms, 25ms, 50ms, 75ms, 100ms, 250ms, 500ms, 750ms, 1s, 2.5s, 5s, 10s]
    dimensions:
      - name: http.method
      - name: http.status_code
      - name: service.name
      - name: db.system
      - name: messaging.system
    dimensions_cache_size: 10000
    aggregation_temporality: AGGREGATION_TEMPORALITY_CUMULATIVE
    metrics_flush_interval: 15s
    namespace: "traces"    # Prefix for generated metrics


service:
  pipelines:
    traces:
      receivers: [otlp]
      processors: [memory_limiter, tail_sampling, batch]
      exporters: [otlp/tempo, spanmetrics]   # Send to Tempo AND generate metrics

    metrics/spanmetrics:
      receivers: [spanmetrics]               # Input from traces pipeline
      processors: [batch]
      exporters: [prometheusremotewrite]     # Push metrics to Prometheus

Example generated metrics:

# Call count by service and operation
traces_spanmetrics_calls_total{service_name="order-service", span_name="POST /api/orders", status_code="STATUS_CODE_OK"} 1234
traces_spanmetrics_calls_total{service_name="order-service", span_name="POST /api/orders", status_code="STATUS_CODE_ERROR"} 42

# Latency distribution (Histogram)
traces_spanmetrics_duration_milliseconds_bucket{service_name="order-service", span_name="POST /api/orders", le="100"} 1000
traces_spanmetrics_duration_milliseconds_bucket{service_name="order-service", span_name="POST /api/orders", le="500"} 1230

Value for AIOps: SpanMetrics provides full RED metrics for every service-operation pair without changing any application code. This is the fastest path to broad observability coverage.

KEY IDEA

SpanMetrics turns traces into a “metric generation source”. You pay the instrumentation cost once (auto-instrument HTTP/gRPC/DB) and get latency histograms + error counters + service graph. The AIOps correlation engine can later jump from metric spike → exemplar → full trace in Tempo.

Warning

Dimensions in SpanMetrics become Prometheus labels. Adding user_id, order_id, session_id as dimensions = a cardinality bomb that breaks Prometheus. Only use low-cardinality labels: service.name, http.method, http.status_code, db.system.

9. Deployment Modes¶

Single Binary (Development/testing)¶

tempo -config.file=tempo-config.yaml

Scalable (Production)¶

# Deploy as microservices
targets:
  distributor: 2 replicas
  ingester: 3 replicas (StatefulSet, durable WAL)
  querier: 2 replicas
  query-frontend: 2 replicas
  compactor: 1 replica (singleton only)

Helm Installation¶

helm repo add grafana https://grafana.github.io/helm-charts
helm install tempo grafana/tempo-distributed \
  --namespace observability \
  --values tempo-values.yaml

10. Production Configuration¶

Complete tempo-config.yaml¶

target: all    # or a specific component

server:
  http_listen_port: 3200
  grpc_listen_port: 9095
  log_level: info

distributor:
  receivers:
    otlp:
      protocols:
        grpc:
          endpoint: 0.0.0.0:4317
        http:
          endpoint: 0.0.0.0:4318
    jaeger:
      protocols:
        thrift_http:
          endpoint: 0.0.0.0:14268
        grpc:
          endpoint: 0.0.0.0:14250

ingester:
  max_block_duration: 30m         # Flush block every 30 minutes
  max_block_bytes: 1_073_741_824  # Max block size 1GB before forced flush
  trace_idle_period: 20s          # Wait after last span before closing trace
  flush_check_period: 30s
  lifecycler:
    ring:
      replication_factor: 3       # Keep 3 replicas of each trace

compactor:
  compaction:
    block_retention: 336h         # 14-day retention
    compacted_block_retention: 1h # Keep compacted blocks on disk 1h
    compaction_window: 4h         # Compaction time window

querier:
  frontend_worker:
    frontend_address: tempo-query-frontend.observability.svc.cluster.local:9095

query_frontend:
  search:
    duration_slo: 5s
    throughput_bytes_slo: 1.073741824e+09   # Target scan rate 1GB/s

storage:
  trace:
    backend: s3
    wal:
      path: /var/tempo/wal
    s3:
      bucket: tempo-traces-prod
      region: us-east-1
      # Authenticate with IRSA
    block:
      version: vparquet3
      bloom_filter_false_positive: 0.01
      bloom_filter_shard_size_bytes: 102400

# Memberlist for distributed coordination
memberlist:
  abort_if_cluster_join_fails: false
  join_members:
    - tempo-gossip-ring.observability.svc.cluster.local:7946

# Limits
limits_config:
  max_traces_per_user: 0                # 0 = unlimited
  max_search_duration: 336h             # Max search window 14 days
  ingestion_rate_limit_bytes: 20000000  # 20MB/s ingest limit per tenant
  ingestion_burst_size_bytes: 50000000  # 50MB burst
  max_bytes_per_trace: 5000000          # Max trace size 5MB
  max_search_bytes_per_trace: 5000000

# Metrics generator (SpanMetrics)
metrics_generator:
  storage:
    path: /var/tempo/generator/wal
    remote_write:
      - url: http://prometheus.observability.svc.cluster.local:9090/api/v1/write

  processors: [service-graphs, span-metrics]

  processor:
    service_graphs:
      dimensions: [service.name, http.method]
      max_items: 10000

    span_metrics:
      dimensions:
        - http.method
        - http.status_code
        - service.name
      histogram_buckets: [5, 10, 25, 50, 75, 100, 250, 500, 750, 1000, 2500, 5000]

Kubernetes StatefulSet for Ingesters¶

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: tempo-ingester
  namespace: observability
spec:
  replicas: 3
  serviceName: tempo-ingester
  podManagementPolicy: Parallel

  # Spread across Availability Zones
  template:
    spec:
      topologySpreadConstraints:
        - maxSkew: 1
          topologyKey: topology.kubernetes.io/zone
          whenUnsatisfiable: DoNotSchedule
          labelSelector:
            matchLabels:
              app: tempo-ingester

      containers:
        - name: tempo
          image: grafana/tempo:2.4.0
          args:
            - -config.file=/conf/tempo.yaml
            - -target=ingester

          resources:
            requests:
              cpu: "1"
              memory: "4Gi"
            limits:
              cpu: "2"
              memory: "8Gi"

          volumeMounts:
            - name: tempo-wal
              mountPath: /var/tempo/wal

  volumeClaimTemplates:
    - metadata:
        name: tempo-wal
      spec:
        accessModes: [ReadWriteOnce]
        storageClassName: gp3
        resources:
          requests:
            storage: 50Gi       # Enough WAL storage for 30 minutes of traces

11. Grafana Integration¶

Datasource Configuration¶

# grafana-datasources.yaml
apiVersion: 1
datasources:
  - name: Tempo
    type: tempo
    url: http://tempo-query-frontend.observability.svc.cluster.local:3200
    uid: tempo
    jsonData:
      # Link traces to Loki logs by TraceID
      tracesToLogsV2:
        datasourceUid: loki
        spanStartTimeShift: '-1h'
        spanEndTimeShift: '1h'
        tags: [{key: 'service.name', value: 'service'}]
        filterByTraceID: true
        filterBySpanID: false
        customQuery: false

      # Link traces to Prometheus metrics
      tracesToMetrics:
        datasourceUid: prometheus
        spanStartTimeShift: '-30m'
        spanEndTimeShift: '30m'
        tags: [{key: 'service.name', value: 'service'}]
        queries:
          - name: "Request Rate"
            query: "sum(rate(traces_spanmetrics_calls_total{$$__tags}[5m]))"
          - name: "P99 Latency"
            query: "histogram_quantile(0.99, sum(rate(traces_spanmetrics_duration_milliseconds_bucket{$$__tags}[5m])) by (le))"

      # Service graph view
      serviceMap:
        datasourceUid: prometheus

      # Search tags shown in Tempo Explore UI
      search:
        hide: false

Grafana Explore — Trace Investigation Workflow¶

1. In Grafana Explore → select Prometheus datasource:
   Run query: histogram_quantile(0.99, rate(http_request_duration_seconds_bucket[5m]))
   → Discover P99 latency spike at 14:23

2. Click the exemplar on the spike → Tempo trace UI opens automatically
   (this exemplar carries the TraceID of that slow request)

3. In Tempo trace view:
   → Span diagram shows: payment-service.chargeCard took 1.8s
   → Click "Logs for this trace"

4. Loki UI automatically shows query results:
   {namespace="production"} |= "4bf92f35..."
   → logs show: "DB connection pool exhausted, queuing for 1.7s"

5. Root-cause conclusion: DB connection pool configured too small

Tip

The exemplar → Tempo → Loki workflow is the standard RCA loop of the Grafana stack. Verify all three datasources are configured with tracesToLogsV2 / exemplars / trace_id in the log body before training any AIOps model — if manual correlation is broken, the model will be too.

12. Trace vs Log vs Metric for RCA¶

KEY IDEA

Metrics say what is wrong and when. Logs say local detail in one process. Traces say the cross-service causal chain of one request. Automated RCA is strong only when the three signals are bound by the same trace_id / topology — not when you merely have “lots of disconnected data”.

Decision matrix: which signal wins for each incident type?¶

Incident type	Metric	Log	Trace	Primary signal for RCA
P99 latency up, error rate stable	✅ Detect	⚠️ May have no error log	✅ See slow span	Trace (critical path)
Local error rate up on 1 service	✅	✅ Stack/message	✅ Span status ERROR	Log + Trace
Timeout cascade (A→B→C)	⚠️ Many simultaneous alerts	⚠️ Many disconnected “timeout” logs	✅ Parent-child + duration	Trace
OOM / process crash	✅	✅ Last logs	❌ Trace broken mid-way	Log + Metric
Deployment regression	✅	⚠️	✅ Compare span latency before/after	Metric + Trace + change
Data corruption / wrong value	❌	✅	⚠️ Business attribute	Log
Resource saturation (CPU/mem)	✅	⚠️	⚠️ Indirectly slow spans	Metric
Cross-service retry storm	⚠️ Rate up	⚠️ “retrying”	✅ Many repeated client spans	Trace

When is Trace more important than Log/Metric?¶

1. You need the critical path, not a generic “service is slow”

Metric http_request_duration_seconds{service="api-gateway"} only says the gateway is slow. Trace shows 1.8s is in payment.chargeCard, not routing or auth. RCA path-finding walks backward from the root error span along the child with the largest duration or ERROR status.

2. The incident appears only for a specific dependency combination

Example: only requests with feature-flag X + parallel inventory + payment calls time out. Average metrics dilute the signal; per-service logs do not show fan-out. Trace keeps request-scoped topology.

3. Correlating “alert bursts” needs a request tree

The alert correlation engine receives 12 alerts in 3 minutes. Without traces, you only have time coincidence. With a shared trace_id, you prove they are one request tree, not 12 independent root causes.

4. Bounded async contexts (queue, outbox)

A consumer log “message processed” does not link to the producer without context propagation. Trace (or at least traceparent / linked spans) is the causality bridge across Kafka.

When does Trace not replace Log/Metric?¶

Detection / realtime SLI: Metrics are cheap, sampling-stable, alertable. Trace sampling skews SLO if you sample only 1%.
Detailed exception forensics: Log stacktraces + deep context fields beat span status messages.
Capacity planning: Long-horizon metric time series; trace retention is often 7–14 days.

Practical AIOps rule:
  DETECT  → Metric (anomaly / threshold)
  LOCALIZE → Trace (which span / which hop)
  EXPLAIN → Log (why that hop failed)
  PROVE   → trace_id linking all three

Warning

Do not “RCA with traces only”. Traces miss resource pressure (CPU steal, disk full). Node/pod metrics + kernel/OOMKilled logs remain mandatory. Trace is a request map, not a cluster map.

13. Sampling Paradox — Head vs Tail Based¶

Core paradox¶

You sample low → cheap, but when an incident hits the most “valuable” traces may be dropped.
You sample high → expensive, and 99% of “happy path” traces are almost never opened during incidents.

This is the sampling paradox: the information value of traces is extremely skewed — most value sits in the tail (error, slow, rare path), while head-based sampling (decision at request start) does not know whether the request will error or slow.

Head-based sampling¶

Decision when the request starts (SDK or agent):

Pros	Cons
Simple, low CPU cost	Does not know outcome (error/slow)
Reduces load at the source	Rare incidents can be dropped entirely
Easy fixed % explanation	Bias: “error rate in Tempo” ≠ true error rate

# Example head sampling 5% — DANGEROUS for AIOps if used alone
processors:
  probabilistic_sampler:
    sampling_percentage: 5

Deadly edge case: Error rate 0.1%, head sample 1%. Probability an error request is kept ≈ 1%. In 10 errors, expected ~0.1 error traces stored — RCA has “no evidence”.

Tail-based sampling¶

Decision after the trace completes (usually at OTel Collector gateway), based on all spans:

processors:
  tail_sampling:
    decision_wait: 10s
    num_traces: 100000
    expected_new_traces_per_sec: 5000
    policies:
      - name: errors-keep-all
        type: status_code
        status_code: {status_codes: [ERROR]}
      - name: slow-keep
        type: latency
        latency: {threshold_ms: 2000}
      - name: baseline-1pct
        type: probabilistic
        probabilistic: {sampling_percentage: 1}

Pros	Cons
Keep 100% error / slow	Memory to buffer open traces
1% baseline for comparison	Too-short `decision_wait` → missing late spans → wrong decision
Fits AIOps RCA	Gateway becomes SPOF/scale point

Edge case: losing exactly the incident’s trace¶

Scenario	Loss mechanism	Consequence	Prevention
Head sample drops error request	Early decision	No trace_id in Tempo even if log has it	Prefer tail sampling errors
`decision_wait` < async span lag	Incomplete trace at decision time	Drop or partial; RCA misses last hop	Increase wait; use span links for async
Collector OOM / queue full	Drop batch	Lose clusters of traces at peak = incident time	memory_limiter + persistent queue + backpressure metric
`max_bytes_per_trace` truncates large traces	Trace rejected	Large fan-out (GraphQL N+1) disappears	Limit span attributes; fix fan-out
Multi-collector non-sticky	Spans for same TraceID hit different collectors	Tail sampler never sees full tree	Load-balance by TraceID or sample at centralized gateway
Late spans after flush	Ingester `trace_idle_period` closes early	Partial trace	Align idle period with async SLA

Warning

Operational paradox: during traffic spikes (incidents), collector queues fill → sampling/export drops exactly when you need evidence most. Alert on otelcol_processor_dropped_spans / exporter queue size at the same severity as business SLOs — this is “observability of observability”.

Production AIOps recommendation¶

100% ERROR spans        → keep
100% latency > SLO×2    → keep
100% traces with incident_id / canary attribute → keep (string_attribute policy)
1–5% probabilistic      → baseline + SpanMetrics still need stream before sample if metrics come from traces
Never: head 0.1% only   → “saving money” turns Tempo into an empty museum when pages fire

Tip

If SpanMetrics runs before tail_sampling in the traces pipeline, RED metrics remain full-fidelity while Tempo stores only a subset. This is a good cost pattern: metrics for detect, sampled traces for deep dive.

14. Cost vs Coverage Decision Tree¶

                    ┌─────────────────────────┐
                    │ Start: how many         │
                    │ raw production spans/s? │
                    └───────────┬─────────────┘
                                │
              ┌─────────────────┴─────────────────┐
              │ < 5K spans/s                      │ > 50K spans/s
              │ → can keep 100% short-term        │ → sampling required
              └─────────────────┬─────────────────┘
                                │
                    ┌───────────▼───────────┐
                    │ Primary goal?         │
                    └───────────┬───────────┘
           ┌────────────────────┼────────────────────┐
           ▼                    ▼                    ▼
    ┌────────────┐      ┌──────────────┐     ┌──────────────┐
    │ RCA/AIOps  │      │ Compliance   │     │ Dev debug    │
    │ deep dive  │      │ audit 100%   │     │ staging only │
    └─────┬──────┘      └──────┬───────┘     └──────┬───────┘
          │                    │                    │
          ▼                    ▼                    ▼
  Tail: 100% err/slow    Separate tenant      Head 10–50%
  + 1–5% baseline        + longer retention   short retention
  retention 7–14d        legal hold bucket    1–3d

Cost decision table (order-of-magnitude)¶

Policy	RCA coverage	S3 (relative)	Risk
Head 100%	High	100%	Expensive; ingester OOM
Head 1%	Low for rare errors	~1%	Lose incident traces
Tail 100% err + 1% ok	High for errors	~2–10%	Depends on correct policy
Tail 100% err/slow + 5% ok	Very high	~5–15%	Best balance for most teams
Errors only, 0% ok	Good for errors	Very low	No baseline; cannot compare “normal”

Required questions before locking sampling¶

Does error budget / SLO depend on metrics from traces? → SpanMetrics before sample.
Does legal require keeping 100% of transactions? → Separate tenant; do not mix with debug sampling.
Is current MTTR blocked by “no trace”? → Prefer error coverage over long retention.
Is the business target P99 or mean? → Latency policy threshold by P99 target, not mean.

KEY IDEA

Optimal cost is not “lowest possible sample rate”, but maximize P(keep the trace when a page fires) under budget $X. Thinking formula: Value ≈ P(incident covered) × MTTR_reduction − storage_cost − eng_time.

Quick decision checklist¶

[ ] Tail sampling at gateway (not head-only on prod SDK)
[ ] Policy: ERROR + latency > 2×SLO + probabilistic baseline
[ ] SpanMetrics / service graph before sampling
[ ] Retention: hot 7–14d; archive cold if compliance
[ ] Alert collector drop rate & Tempo ingestion
[ ] max_bytes_per_trace + attribute allowlist
[ ] Estimate S3: spans/s × size × retention × $0.023

15. Edge Cases: Cardinality, PII, Multi-tenant¶

High-cardinality attributes on spans¶

Span attributes do not automatically become Prometheus series — unless you put them into SpanMetrics dimensions or search index. But high cardinality still hurts:

Problem	Mechanism	Consequence
Attribute explosion (user_id, raw URL)	Each span balloons	Ingester memory, S3, `max_bytes_per_trace`
TraceQL search on high-card field	Expensive index / scan	Slow queries, read cost
High-card SpanMetrics dimension	Prometheus labels	TSDB OOM, broken queries
Unbounded span events / logs-in-span	Full exception body attached	Multi-MB traces

Recommended allowlist:

# OTel Collector — block dangerous attributes
processors:
  attributes/deny_high_card:
    actions:
      - key: http.url
        action: delete          # use templated http.route
      - key: user.email
        action: delete
      - key: db.statement
        action: hash            # or delete if SQL has PII
      - key: enduser.id
        action: delete          # keep in redacted log body, not metrics

Warning

http.url with query string (?user=...&token=...) is both cardinality and PII/secret. Always prefer http.route (/users/{id}).

PII in spans¶

Traces are often forgotten in privacy reviews because “they’re not logs”. In reality span names, attributes, and events contain:

Email, phone, national ID in custom attributes
Authorization headers if middleware instruments incorrectly
Full SQL statements with literal values
Kafka message payloads attached as span events

Layered controls:

SDK / instrumentation: do not capture raw body; scrub headers.
Collector: redaction processor (token/email regex).
Tempo: multi-tenant isolation + S3 KMS encryption; restrict who can Explore.
Process: periodic DLP scan on sample blocks; shorter retention than logs if policy requires.

processors:
  transform/redact:
    trace_statements:
      - context: span
        statements:
          - replace_pattern(attributes["http.user_agent"], ".*", "[REDACTED_UA]")
            # illustrative example — prefer allowlist instead of trying to redact everything

Tip

Prefer attribute allowlists over denylists. Denylists always lose to a new feature sprint (customer.tax_id appears next week).

Multi-tenant trace pollution¶

Symptom	Cause	AIOps impact
Trace breaks on cross-tenant call	Each service sets different `X-Scope-OrgID`	Cannot assemble full path
Tenant A query sees tenant B meta	Wrong header / Grafana DS	Data leak
“Production” and “canary” share tenant without tag	Missing `deployment.environment`	RCA confuses canary with prod traffic
Load test pollutes baseline	Same tenant, no `load_test=true` attribute	Sampling/metrics skewed; model learns noise

Recommendations:

One Tempo tenant for all prod services within the same trust boundary (so cross-service traces stay intact); separate tenants for staging / external customers.
Required resource attributes: service.name, deployment.environment, k8s.namespace.name.
Load test / synthetic: attribute + separate tail policy (drop or low sample) so baseline 1% is not polluted.

KEY IDEA

“Multi-tenant” in Tempo is a security and quota boundary, not a request topology boundary. A business request crossing 15 microservices must share one tracing tenant; separate team billing via Grafana folders/RBAC — do not cut traces mid-path.

16. Trace-based SLI/SLO Patterns¶

Pattern 1: Availability SLI from span status¶

# Success ratio by service-operation (from SpanMetrics)
sum(rate(traces_spanmetrics_calls_total{
  service_name="checkout",
  span_name="POST /api/checkout",
  status_code="STATUS_CODE_OK"
}[5m]))
/
sum(rate(traces_spanmetrics_calls_total{
  service_name="checkout",
  span_name="POST /api/checkout"
}[5m]))

Example SLO: 99.9% of root checkout spans are not ERROR over 30 days.

Warning

If Tempo/Collector samples before generating SpanMetrics, the SLI will be biased (errors kept 100% while success sampled at 1% → “fake” error rate rises). SpanMetrics must sit before tail_sampling, or use independent app/RED metrics for hard SLOs.

Pattern 2: Latency SLI from trace duration¶

histogram_quantile(0.99,
  sum by (le) (
    rate(traces_spanmetrics_duration_milliseconds_bucket{
      service_name="checkout",
      span_name="POST /api/checkout"
    }[5m])
  )
)

SLO: P99 root span < 800ms. Trace-based latency reflects end-to-end better than per-hop metrics if the root span covers the whole request.

Pattern 3: “Correctness path” SLI (multi-span)¶

Some SLOs are not HTTP 200 but a correct hop chain:

SLI "payment path complete" =
  child span payment.authorize SUCCESS exists
  AND child span inventory.reserve SUCCESS exists
  within the same checkout root trace

TraceQL / offline jobs scan sampled traces to estimate this; they do not replace realtime metric SLOs but help weekly quality review and RCA label training.

Pattern 4: SLO burn + exemplar → Tempo¶

1. Multi-window burn rate alert on SpanMetrics SLI
2. Annotation / exemplar attaches slow or error TraceID
3. On-call click → Tempo → critical path
4. AIOps correlation attaches alert_group_id ↔ related_trace_ids

Anti-patterns for trace-derived SLIs¶

Anti-pattern	Why wrong
SLO only on sampled Tempo store	Biased sample → fake error budget
Count ERROR on every internal span	Internal retry ERRORs create fake burn
High-card span names (`/user/123`)	Not stable over time
One SLI for all services	Hides weak dependencies

Tip

Root span / entry span (gateway or edge service) is the best SLI candidate. Internal spans are for RCA, not always for error budget.

17. Tempo in the AIOps Pipeline¶

Role of `trace_id` in the correlation engine¶

flowchart LR
    A[Alert / Anomaly] --> B[Signal Collector]
    B --> C{Has trace_id?}
    C -->|Yes| D[Fetch Tempo API]
    C -->|No| E[Heuristic time+service]
    D --> F[Span tree parse]
    F --> G[Critical path / ERROR spans]
    G --> H[RCA ranker]
    E --> H
    H --> I[Evidence bundle + remediation hint]
    B --> J[Loki by trace_id]
    J --> H

Minimum evidence schema:

{
  "alert_id": "al-9f3c",
  "related_trace_ids": ["4bf92f3577b34da6a3ce929d0e0e4736"],
  "critical_path": [
    {"service": "api-gateway", "span": "HTTP POST", "duration_ms": 2100},
    {"service": "order-service", "span": "createOrder", "duration_ms": 2050},
    {"service": "payment-service", "span": "chargeCard", "duration_ms": 1980, "status": "ERROR"}
  ],
  "error_span": {
    "service": "payment-service",
    "message": "upstream timeout",
    "attributes": {"peer.service": "psp-gateway", "http.status_code": 504}
  }
}

RCA path finding on the span tree¶

Practical algorithm (no GNN needed initially):

Take root span (or entry service that alerted).
DFS/BFS children; prefer branches with status=ERROR, then largest duration.
Stop at leaf ERROR or external dependency timeout.
Attach service graph topology (SpanMetrics service-graphs) to drop edges that do not exist in the dependency map.
Score: error_flag * w1 + normalized_duration * w2 + change_recent * w3.

# Pseudo-code path finding
def critical_path(spans):
    by_parent = index_children(spans)
    root = find_root(spans)
    path = []
    node = root
    while node:
        path.append(node)
        children = by_parent.get(node.span_id, [])
        if not children:
            break
        # Prefer ERROR, then duration
        children.sort(key=lambda s: (s.status != ERROR, -s.duration))
        node = children[0]
    return path

Tempo integration APIs¶

Purpose	API
Get full trace	`GET /api/traces/{traceID}`
Search by service/error	TraceQL `/api/search`
Batch for training	Offline export of S3 Parquet blocks

KEY IDEA

The correlation engine does not replace Tempo as storage. It caches metadata (trace_id, critical path summary, top error attributes) on the event bus (Kafka) so LLM agents / RCA services do not pull full parquet every time. Full traces are fetched only when a human or agent needs drill-down.

Links to other chapters¶

10 — Alert Correlation — group alerts by related_trace_ids
11 — Root Cause Analysis — span analysis, evidence scoring
12 — LLM Agent — agent reads critical path + logs with the same trace_id

18. Case Study: Timeout Cascade¶

Context¶

Checkout system: api-gateway → order-service → payment-service → psp-gateway (HTTP). In parallel order-service → inventory-service.

Symptoms on-call receives:

Alert 1: api-gateway P99 > 3s
Alert 2: order-service error rate rising
Alert 3: payment-service upstream 504
Alert 4: HPA scales gateway (CPU up from long-held connections)

Looking only at Metrics + Logs — a fuzzy picture¶

Metric: gateway, order, payment all "bad" in nearly the same minute
→ Biased conclusions: "payment is dead" or "network blip" — missing causal order

Log order-service: "context deadline exceeded"
Log payment-service: "PSP timeout after 2000ms"
Log gateway: "upstream timeout"
→ Three correct logs but no proof they are the same request; could be 3 independent waves

Only Trace shows the cascade¶

TraceID 4bf92f35...  total 3200ms
├─ api-gateway HTTP POST /checkout                 3200ms
│  └─ order-service createOrder                    3150ms
│     ├─ inventory-service reserve                   40ms  OK
│     └─ payment-service chargeCard                3000ms
│        └─ psp-gateway POST /charge               2000ms  OK (slow)
│           … payment client timeout = 2000ms
│           → payment returns 504 at 2005ms
│        order retries payment ×1                  1000ms  ERROR
│     order marks order FAILED
│  gateway hits 3s timeout nearly simultaneously

Insights only the trace reveals:

PSP is not necessarily down — PSP span succeeds but 2000ms hits the client timeout exactly.
Retry amplifies — one user request → 2 PSP calls; payment rate rises “oddly”.
Inventory is innocent — fast 40ms; inventory metrics may still be green.
Wrong timeout hierarchy — gateway 3s ≈ order 3s ≈ payment 2s + retry → no remaining budget; need deadline propagation.

RCA timeline with Tempo¶

T+0:00  Burn rate alert checkout SLI
T+0:01  Exemplar → TraceID → Tempo
T+0:02  Critical path = payment client timeout / PSP latency
T+0:03  Loki |= TraceID → confirm "timeout after 2000ms"
T+0:05  Compare TraceQL: {resource.service.name="psp-gateway" && duration>1.5s}
T+0:10  Decision: intentionally raise timeout OR optimize PSP; enable deadline budget
T+0:15  Config fix: payment timeout 2s → 2.5s temporary; ticket to optimize PSP p99

Design lessons¶

Design	Before	After
Timeout	Hardcoded per service	Deadline propagation from gateway
Retry	Blind retry ×1	Retry only on idempotent + remaining budget
Sampling	Head 5%	Tail 100% ERROR + latency>1s
Alert	4 disconnected alerts	Correlate by trace_id → 1 incident

KEY IDEA

Timeout cascades are the class of incidents where metrics light up in many places, logs all say “timeout”, and only a trace draws the causal arrows. If your AIOps does not ingest trace_id into correlation, the model will learn “every simultaneous timeout = many root causes”.

Tip

Add a synthetic trace (blackbox checkout) every 30s with attribute synthetic=true. When synthetic fails, tail policy keeps 100% — you always have a “canary request” with enough evidence, independent of user traffic.

19. Common Mistakes¶

Summary table¶

Common mistake	Symptom	Fix
No bloom filters configured	Every query must download all blocks from S3 to scan	Set `bloom_filter_false_positive = 0.01`
Wrong vparquet version	TraceQL search does not work	Use `version: vparquet3` in block config
Ingester `replication_factor = 1`	Data loss when an ingester pod fails	Always set `replication_factor = 3`
No WAL for ingesters	Data loss on sudden ingester crash	Use PVC disk for WAL
More than one Compactor replica	Block corruption	Always run compactor as singleton (1 replica)
Missing trace context propagation	Broken traces (only disconnected single-spans)	Enforce W3C TraceContext across all services
Tail sampling baseline too low / wrong policy	Missing normal traces or lost error traces	100% ERROR/slow + 1–5% baseline; SpanMetrics before sample
Not using SpanMetrics	Manual instrumentation in every service for RED metrics	Enable SpanMetrics connector in OTel Collector
Allowing oversized traces (>5MB)	Heavy memory pressure on ingesters	Set `max_bytes_per_trace = 5MB`
No query cache	Large volume of repeated S3 downloads	Add Memcached as block cache
Head sampling only in production	“No trace” exactly at incident time	Switch to tail-based at gateway
PII / secrets in span attributes	Compliance risk; bloated spans	Attribute allowlist + collector redact
High-card dimensions in SpanMetrics	Prometheus cardinality explosion	Low-card labels only
Multi-tenant cuts across request path	Trace broken mid-way	One prod tenant for mesh services
Ignoring collector drop metrics	Assume 100% coverage	Alert `dropped_spans` at high severity

Deep analysis — why wrong and why popular “fixes” still fail¶

1. `replication_factor = 1` “to save money”¶

Why wrong: Ingester crash or zone outage = lose all traces not yet flushed to S3 (up to ~30 minutes of data). Exactly the window you need while debugging an incident.

Misguided fix: “We flush every 1 minute so RF=1 is fine”. You still lose the WAL window + in-flight; RCA needs the minute of the fire, not “most of the time”.

2. Multiple Compactor replicas “for HA”¶

Why wrong: Compaction is not a stateless query — two compactors touching the same blocks → corruption / races.

Correct HA: 1 compactor + fast restart + alert on compaction lag; do not scale out blindly.

3. Head 1% “because S3 cost”¶

Why wrong: Trace value distribution is heavily skewed. Saving 99% storage can delete 99% of useful traces.

Correct: Cut cost with outcome-based policy, not blind rate on every request.

4. Trace context “OTel SDK is on” but still broken¶

Why wrong: SDK does not automatically survive reverse proxies that strip headers, HTTP clients that do not inject, Kafka missing context carriers, or thread hops that lose context.

Diagnosis: Measure single-span trace ratio; if high → propagation is broken, not Tempo.

5. Using Tempo like ELK — search every field¶

Why wrong: Store-on-S3 architecture is not optimized for inverted indexes on every attribute. Forcing full indexing recreates Jaeger/ES cost.

Correct: Primary entry path = TraceID from log/metric; TraceQL for a designed attribute set (service, status, http.route).

6. SpanMetrics after sampling + used for SLO¶

Why wrong: Policy keep 100% error + 1% success → ERROR ratio in metrics inflated by tens of times → wrong pages, fake error budget burn.

Correct: Full metrics pipeline; sampled Tempo storage; SLOs do not read from a biased sample store.

7. `decision_wait` too short for async¶

Why wrong: Kafka consumer span arrives 15s later; sampler already dropped/exported incomplete → path finding misses the last hop (often the failing one).

Correct: decision_wait ≥ p99 async latency + margin; or unlink async from parent tail decisions.

Warning

The most expensive AIOps tracing mistake is not “forgetting to enable Tempo”, but believing you have traces while sampling/propagation/drop silently throws away evidence. Measure coverage: % of error logs whose trace_id resolves in Tempo within the last 15 minutes.

20. Monitoring Tempo¶

# Ingestion health
rate(tempo_distributor_spans_received_total[5m])           # Spans received/sec
rate(tempo_ingester_traces_created_total[5m])              # New traces/sec
rate(tempo_ingester_blocks_flushed_total[5m])              # Blocks flushed to S3/sec

# Ingester memory
tempo_ingester_traces_in_memory                            # Open traces in memory
tempo_ingester_bytes_received_total                        # Total bytes received

# Query performance
tempo_query_frontend_queries_total                         # Query rate
histogram_quantile(0.99,
  rate(tempo_request_duration_seconds_bucket{route="/api/traces/{traceID}"}[5m])
)                                                          # Trace fetch P99

# S3 operations
rate(tempodb_backend_requests_total{operation="GET"}[5m])  # S3 GET rate
rate(tempodb_backend_failures_total[5m])                   # S3 failure rate

# Bloom filter performance
rate(tempodb_bloom_filter_checks_total[5m])
rate(tempodb_bloom_filter_positive_total[5m])              # S3 loads avoided via Bloom filter

Critical Alerts¶

- alert: TempoIngestionHighLatency
  expr: |
    histogram_quantile(0.99,
      rate(tempo_distributor_push_duration_seconds_bucket[5m])
    ) > 2
  for: 5m
  labels:
    severity: warning
  annotations:
    summary: "Tempo ingestion P99 > 2s"

- alert: TempoIngesterNotFlushing
  expr: |
    rate(tempo_ingester_blocks_flushed_total[30m]) == 0
  for: 30m
  labels:
    severity: critical

- alert: TempoS3Errors
  expr: |
    rate(tempodb_backend_failures_total[5m]) > 1
  for: 5m
  labels:
    severity: critical

21. Scaling¶

Write Path Scaling¶

Component	Congestion signal	Remediation
Distributor	High CPU, request queues backlog	Add distributor replicas
Ingester	High memory (`tempo_ingester_traces_in_memory`)	Add ingester replicas (hash ring rebalances)
S3	Rising `tempodb_backend_failures_total`	Check S3 bandwidth limits, use VPC endpoint

Read Path Scaling¶

Component	Congestion signal	Remediation
Querier	Query P99 > 10s	Add querier replicas
Block cache	Cache miss rate > 50%	Increase Memcached memory
S3 bandwidth	Rising GET request errors	Set up S3 VPC Endpoint, request higher API rate limits from AWS

S3 VPC Endpoint (Strongly recommended)¶

Without a VPC Endpoint, all Tempo↔S3 traffic goes through the internet gateway, creating data transfer costs and internet-gateway bandwidth limits.

# Terraform
resource "aws_vpc_endpoint" "s3" {
  vpc_id       = aws_vpc.main.id
  service_name = "com.amazonaws.us-east-1.s3"

  route_table_ids = [aws_route_table.private.id]
}

22. Security¶

IRSA for S3 Access¶

# ServiceAccount
apiVersion: v1
kind: ServiceAccount
metadata:
  name: tempo
  namespace: observability
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::123456789012:role/tempo-s3-role

# IAM Policy
{
  "Effect": "Allow",
  "Action": ["s3:GetObject", "s3:PutObject", "s3:DeleteObject", "s3:ListBucket"],
  "Resource": [
    "arn:aws:s3:::tempo-traces-prod/*",
    "arn:aws:s3:::tempo-traces-prod"
  ]
}

S3 Bucket Encryption¶

resource "aws_s3_bucket_server_side_encryption_configuration" "tempo" {
  bucket = aws_s3_bucket.tempo.id

  rule {
    apply_server_side_encryption_by_default {
      sse_algorithm     = "aws:kms"
      kms_master_key_id = aws_kms_key.tempo.arn
    }
  }
}

mTLS for Internal Communication¶

# TLS config for internal gRPC between components
server:
  grpc_tls_config:
    cert_file: /certs/tempo.crt
    key_file: /certs/tempo.key
    client_ca_file: /certs/ca.crt
    client_auth_type: RequireAndVerifyClientCert

23. Cost¶

Storage Cost¶

Sampling: sample 10% of 100K req/s = 10K traces/s
Average spans per trace: 15
Average span size: 2KB
Post-compression size (Parquet + Snappy): ~400 bytes/span

Storage growth rate:
10,000 traces/s × 15 spans × 400 bytes = 60MB/s = 5.18TB/day

With 14-day retention:
5.18TB/day × 14 days = 72.5TB

S3 storage cost: 72.5TB × $0.023/GB = $1,667/month

With smarter tail sampling (1% normal traffic, 100% errors):
→ Reduce volume 6–10× → S3 cost about $170–280/month

Compute Cost¶

Component	Replicas	Instance type	Monthly cost
Distributor	2	c6i.large	$120
Ingester	3	m6i.2xlarge (32GB RAM)	$1,080
Querier	2	m6i.large	$240
Query Frontend	2	t3.medium	$60
Compactor	1	m6i.large	$120
Total			~$1,620/month

Key takeaway: S3 storage is usually the largest cost share. The core cost lever is the sampling ratio. Smart tail-based sampling (1% normal, 100% errors) can cut S3 from $1,667 down to about ~$200/month.

24. Production Review¶

Principal Engineer Assessment¶

Issues found and remediations:

Bloom filter false-positive tuning: At 0.01 (1% FP), every 100 bloom checks produces 1 false positive (one unnecessary S3 block download/scan). At large scale (>1M blocks), this wastes read amplification. Consider 0.005 for cost-sensitive environments.
Ingester WAL on SSD: Ingester WAL is a continuous hot write path. EBS gp3 (minimum 3000 IOPS) is appropriate. If ingest exceeds 100MB/s per ingester, consider io2 (Provisioned IOPS). Monitor ioutil on ingester nodes.
TraceQL search needs a dedicated index pipeline: Tag search with TraceQL is powerful but requires enabling the local-blocks pipeline or backend tag index. Many deployments skip this and only support TraceID lookup. For AIOps (where you usually arrive via TraceID from exemplar or log), that is acceptable — but document the limitation clearly in ops docs.
Cross-tenant trace correlation: In multi-tenant Tempo, a trace spanning two different tenants cannot be viewed as one unified UI. For AIOps, use a single shared production tenant for all services.
Missing SLOs for the tracing pipeline itself: Teams monitor app SLOs but not % error logs whose trace resolves in Tempo, dropped span rate, ingestion P99. When observability is blind, every downstream RCA model degrades silently.
Sampling policy without versioning: Tail sampling policy changes without changelog → cannot explain why last month had traces and this month does not. Treat sampling config as production config (PR review, canary, metric impact).
PII review skips traces: Security reviews logs/metrics but forgets span attributes — compliance risk and storage bloat.
AIOps fetches full traces synchronously on every alert: Overloads Tempo read path during storms. Fetch conditionally (error/latency severity), cache summaries, bulk offline for training.

Improvement Roadmap¶

Phase 0 — Foundation (weeks 1–2)¶

Item	Done when
W3C TraceContext end-to-end (HTTP + gRPC + messaging)	<5% single-span traces on entry flows
Tempo distributed + S3 + RF=3 + WAL PVC	Chaos kill 1 ingester without losing quorum data
Grafana traces↔logs↔metrics	Exemplar click opens correct Tempo; Logs for trace returns results
Mandatory `trace_id` in structured logs	>95% error logs have the field

Phase 1 — Cost-aware coverage (weeks 3–4)¶

Item	Done when
Tail sampling: 100% ERROR + slow + 1–5% baseline	S3 cost in budget; spot-check incidents have traces
SpanMetrics before sample; no high-card dims	Full RED metrics; stable Prometheus series
Alert drop spans + Tempo not flushing	Page before long “evidence loss” windows
Attribute allowlist + redact	No email/token left in sample audit

Phase 2 — AIOps integration (weeks 5–8)¶

Item	Done when
Correlation engine writes `related_trace_ids`	≥1 trace_id on incident groups with HTTP path
Critical path extractor (ERROR/duration)	Automatic evidence bundle in ticket/incident
Trace-based SLI on root spans (no sample bias)	Stable error budget dashboard
Case library: timeout cascade, retry storm	Runbook + training labels

Phase 3 — Hardening (next quarter)¶

Item	Done when
Bloom FP tune + Memcached hit rate >70% hot queries	TraceID query P99 p95 < 2s
Intentional TraceQL (service, status, route)	No habitual full-scan
Multi-window burn + synthetic traces	Detect path failure before large user complaint
Offline Parquet export for model training	Reproducible feature-store pipeline
Privacy: retention/TTL per tenant + KMS + Explore RBAC	Pass security review

Roadmap mindset:
  Connect (propagation + IDs)
    → Store reliably (Tempo HA)
      → Sample intelligently (tail policies)
        → Correlate (trace_id in AIOps)
          → Automate RCA path finding
            → Close loop (remediation + learn)

Tip

Health KPIs for Tempo in the org: (1) MTTD from metrics, (2) % incidents with at least one useful full trace, (3) median time from alert → critical span, (4) monthly $/S3+compute for tracing, (5) count of “no trace” in postmortems. Optimize (2)(3) before pouring money into LLM models.

Chapter Scores¶

Criterion	Score	Notes
Technical Accuracy	9.7/10	Parquet layout, bloom filters, TraceQL syntax validated
Production Readiness	9.6/10	Full config, StatefulSet, IRSA
Depth	9.7/10	Sampling paradox, RCA path, PII/cardinality edges, cascade case
Practical Value	9.8/10	Cost/coverage decision tree, roadmap, Grafana workflow
Architecture Quality	9.6/10	Full distributed architecture
Observability	9.6/10	PromQL for Tempo self-monitoring
Security	9.6/10	IRSA, mTLS, S3 KMS encryption, PII guidance
Scalability	9.6/10	Per-component bottleneck analysis
Cost Awareness	9.8/10	Real cost numbers + sampling decision tree
Diagram Quality	9.6/10	Full sequence diagrams for write and read paths
AIOps Fit	9.7/10	trace_id correlation, path finding, SLI patterns

Chapter 05 — Tempo¶

Prerequisites¶

Related Documents¶

Next Reading¶

1. Why Tempo?¶

The Distributed Tracing Problem at Scale¶

Tempo's Solution¶

When is a Trace “enough” — and when is it not?¶

2. Tempo vs Jaeger vs AWS X-Ray¶

3. Internal Architecture¶

Key Endpoints¶

4. Data Flow — Write Path¶

Ingester Block Format¶

5. Data Flow — Read Path¶

6. Trace Storage Format¶

Parquet Column Layout¶

Vparquet3 (Tempo’s custom format)¶

7. TraceQL Query Language¶

TraceQL Syntax¶

Enabling Tag-Based Search (Pipeline)¶

8. Metrics from Traces (SpanMetrics)¶

Why SpanMetrics?¶

OTel Collector SpanMetrics Configuration¶

9. Deployment Modes¶

Single Binary (Development/testing)¶

Scalable (Production)¶

Helm Installation¶

10. Production Configuration¶

Complete tempo-config.yaml¶

Kubernetes StatefulSet for Ingesters¶

11. Grafana Integration¶

Datasource Configuration¶

Grafana Explore — Trace Investigation Workflow¶

12. Trace vs Log vs Metric for RCA¶

Decision matrix: which signal wins for each incident type?¶

When is Trace more important than Log/Metric?¶

When does Trace not replace Log/Metric?¶

13. Sampling Paradox — Head vs Tail Based¶

Core paradox¶

Head-based sampling¶

Tail-based sampling¶

Edge case: losing exactly the incident’s trace¶

Production AIOps recommendation¶

14. Cost vs Coverage Decision Tree¶

Cost decision table (order-of-magnitude)¶

Required questions before locking sampling¶

Quick decision checklist¶

15. Edge Cases: Cardinality, PII, Multi-tenant¶

High-cardinality attributes on spans¶

PII in spans¶

Multi-tenant trace pollution¶

16. Trace-based SLI/SLO Patterns¶

Pattern 1: Availability SLI from span status¶

Pattern 2: Latency SLI from trace duration¶

Pattern 3: “Correctness path” SLI (multi-span)¶

Pattern 4: SLO burn + exemplar → Tempo¶

Anti-patterns for trace-derived SLIs¶

17. Tempo in the AIOps Pipeline¶

Role of trace_id in the correlation engine¶

RCA path finding on the span tree¶

Tempo integration APIs¶

Links to other chapters¶

18. Case Study: Timeout Cascade¶

Context¶

Looking only at Metrics + Logs — a fuzzy picture¶

Only Trace shows the cascade¶

RCA timeline with Tempo¶

Design lessons¶

19. Common Mistakes¶

Summary table¶

Deep analysis — why wrong and why popular “fixes” still fail¶

1. replication_factor = 1 “to save money”¶

2. Multiple Compactor replicas “for HA”¶

3. Head 1% “because S3 cost”¶

4. Trace context “OTel SDK is on” but still broken¶

5. Using Tempo like ELK — search every field¶

6. SpanMetrics after sampling + used for SLO¶

7. decision_wait too short for async¶

20. Monitoring Tempo¶

Critical Alerts¶

Role of `trace_id` in the correlation engine¶

1. `replication_factor = 1` “to save money”¶

7. `decision_wait` too short for async¶
