Chapter 14 — Production Operations¶

Production operations chapter for the AIOps platform itself: chaos engineering, disaster recovery, cost governance, security hardening, performance benchmarking, and runbooks that keep the system healthy. The production monitoring platform itself must meet production standards. After this chapter, continue with the case-study chapters: 15 — Big Tech, 16 — E-commerce & Banking, 17 — Famous Incidents.

Prerequisites¶

All previous chapters. This chapter synthesizes practical operations concerns.

08 — Topology & Change — service graph + change/deploy bus
09 — Anomaly Detection — precision-at-page, drift ops
10 — Alert Correlation — storm drills, topology health
11 — Root Cause Analysis — accuracy feedback, time budget
12 — LLM Agent — cost runaway LLM, human override
13 — Remediation — safety gates, blast radius
15 — Big Tech AIOps — operating models & maturity at scale
16 — E-commerce & Banking — cost/compliance constraints by industry
17 — Famous Incidents — game day scenarios from public outages

Next Reading¶

After this chapter, continue to 15 — Big Tech AIOps to learn patterns from Google/Netflix/AWS/Meta/Uber, then 16 — E-commerce & Banking and 17 — Famous Incidents.

How to read this chapter (concept-first)¶

Concepts first — code second

From chapter 09 onward, prefer: problem → idea → input data → algorithm/model → output → pros/cons → when to use. Implementation lives under See the code below (click to expand). Goal: understand why it works on AIOps telemetry, not only copy-paste snippets.

Step	Question
1. Problem	What pain does this solve (noise, cascade, MTTR…)?
2. Idea	2–3 sentence intuition, no formulas
3. Data in	Which metrics/logs/traces/events, windows, features?
4. Algorithm	Computation steps / model flow
5. Output	Event schema, score, rank, action proposal?
6. Trade-offs	Pros / cons / cost / explainability
7. When	When to use — and when not to

1. Platform Architecture Summary¶

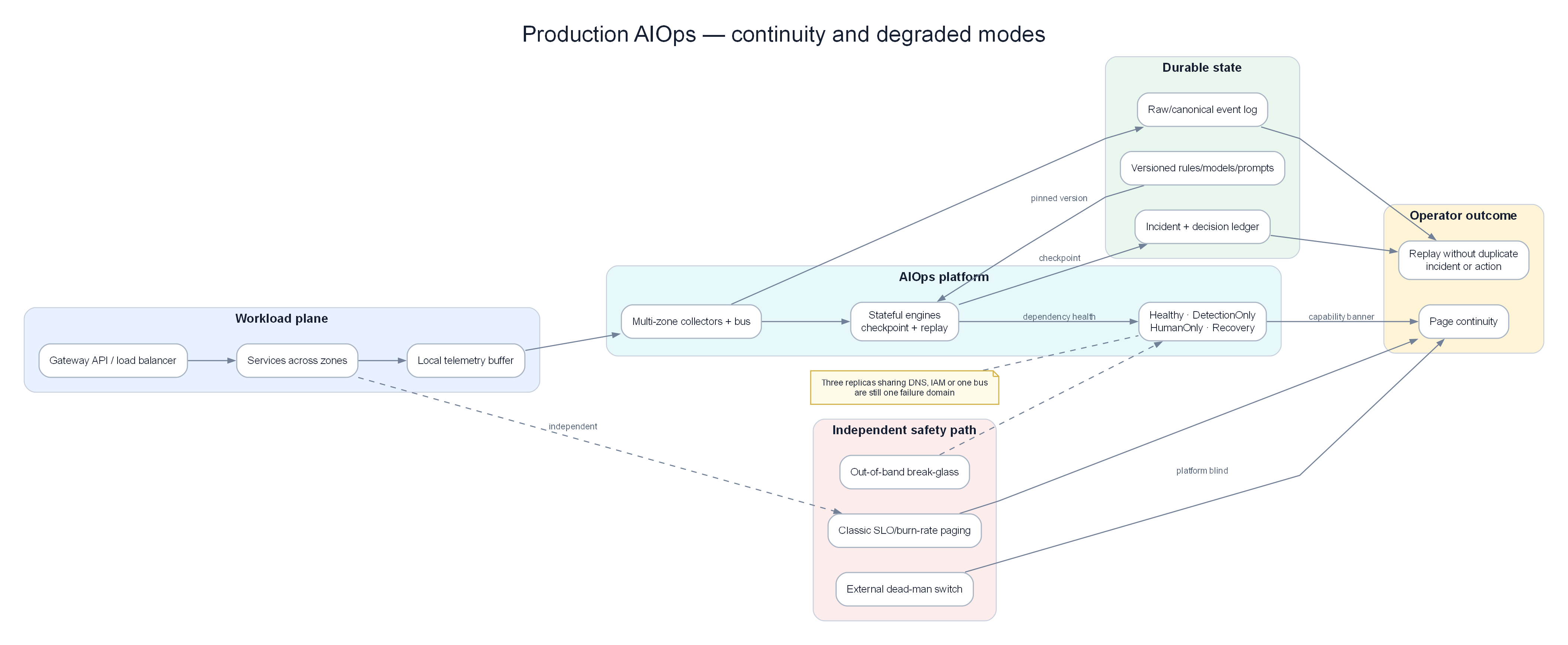

AIOps on Kubernetes

Continuity design: durable state, checkpoint/replay, degraded modes, and an independent paging path when the platform is blind.

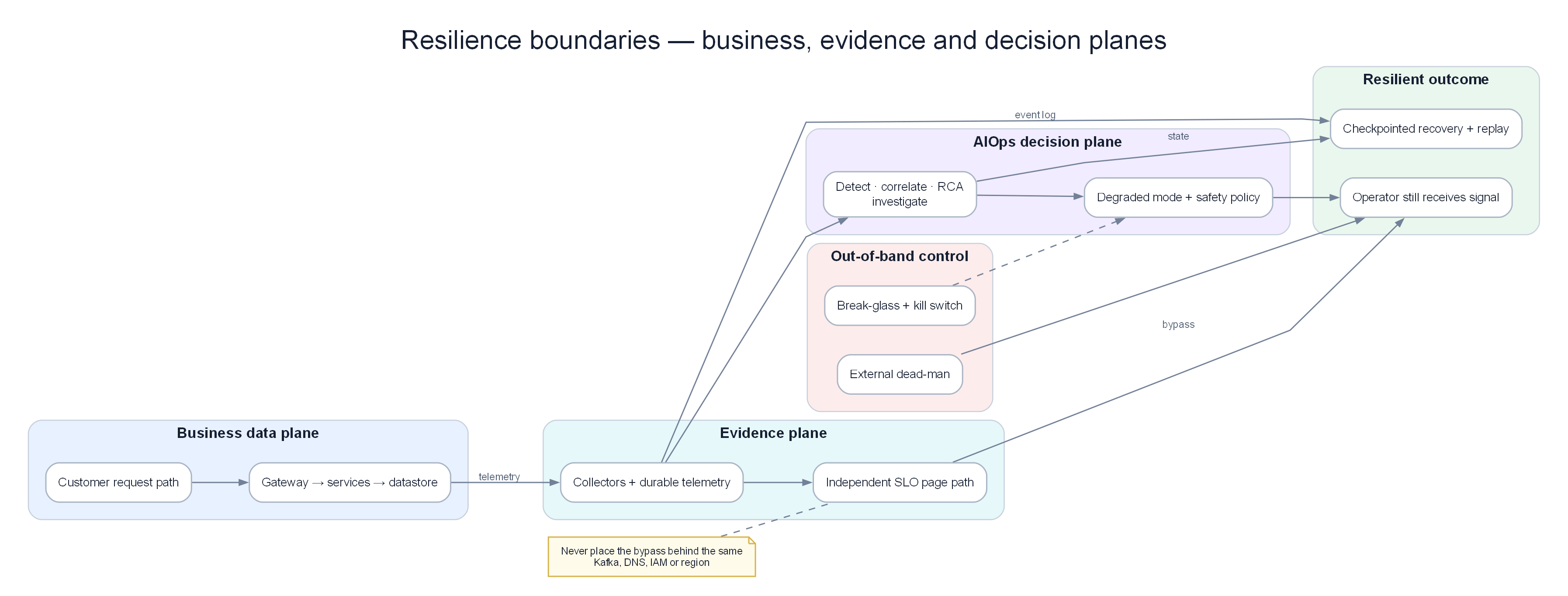

Control plane vs data plane

Separate business, evidence, decision, and safety planes so one failure domain cannot disable both observation and recovery.

KEY IDEA

The AIOps platform is also a production system. If Kafka/AD/Correlation go down, you go blind when applications fail — a double outage. Operating standards for AIOps must not be lower than those for payment-service.

Tip

Dogfood before you evangelize: page the platform team with the same AIOps anomaly/correlation stack, not with a separate "AIOps is down" script outside the system.

Complete architecture of the AIOps platform, showing all components and data flows:

graph TD
    subgraph Collection["📡 Collection Layer"]
        OA[OTel Alloy\nDaemonSet]
        OG[OTel Collector\nGateway]
        PROM[Prometheus\nScraper]
    end

    subgraph Transport["🚌 Transport Layer"]
        KAFKA[Apache Kafka / MSK\n12 topics]
    end

    subgraph Storage["💾 Storage Layer"]
        LOKI[Loki\n+ S3]
        TEMPO[Tempo\n+ S3]
        THANOS[Thanos\n+ S3]
    end

    subgraph Intelligence["🧠 Intelligence Layer"]
        AD[Anomaly Detector\nEWMA+STL+IF+LSTM]
        CE[Correlation Engine\n5-stage pipeline]
        RCA[RCA Engine\nTopology+Logs+Traces]
        LLM[LLM Agent\nClaude / Llama]
    end

    subgraph Action["⚡ Action Layer"]
        REM[Remediation Engine\nK8s + SSM]
        NOTIF[Notification Hub\nSlack + PagerDuty]
    end

    subgraph Dashboards["📊 Dashboards"]
        GRAFANA[Grafana\nDashboards + Alerts]
    end

    OA -->|logs/traces| OG
    OG -->|OTLP| LOKI
    OG -->|OTLP| TEMPO
    OG -->|metrics| KAFKA
    PROM -->|scrape| THANOS
    THANOS -->|remote_write| KAFKA

    KAFKA -->|aiops-raw-metrics| AD
    KAFKA -->|aiops-raw-logs| AD
    AD -->|aiops-anomalies| CE
    CE -->|aiops-correlated-alerts| RCA
    RCA -->|aiops-rca-results| LLM
    LLM -->|aiops-remediation-triggers| REM
    LLM --> NOTIF
    REM -->|aiops-remediation-results| NOTIF

    LOKI --> GRAFANA
    TEMPO --> GRAFANA
    THANOS --> GRAFANA
    KAFKA --> GRAFANA

    style Collection fill:#dbeafe,color:#1e293b
    style Transport fill:#f3e8ff,color:#1e293b
    style Storage fill:#dcfce7,color:#1e293b
    style Intelligence fill:#f3e8ff,color:#1e293b
    style Action fill:#ffedd5,color:#1e293b
    style Dashboards fill:#dbeafe,color:#1e293b

Component Summary¶

Component	Technology	Deployment	Monthly cost
Collection (agents)	Grafana Alloy DaemonSet	K8s DaemonSet	$180
Collection (gateway)	OTel Collector	K8s Deployment ×3	$180
Log storage	Loki + S3	K8s StatefulSet	~$750
Trace storage	Tempo + S3	K8s StatefulSet	~$1,620
Metric storage	Prometheus + Thanos + S3	K8s	~$800
Transport	AWS MSK	Managed service	$738
Anomaly Detection	Python services + Redis	K8s Deployment	~$1,824
Alert Correlation	Python service + Redis	K8s Deployment	$775
RCA Engine	Python service + Weaviate	K8s Deployment	$1,370
LLM Agent	Python service + API	K8s Deployment	~$1,000
Remediation Engine	Python service	K8s Deployment	$127
Total			~$9,364/month

2. High Availability Design¶

HA Requirements¶

Component	Required uptime	Mechanism to meet target	Status
Collection agents	99.9%	DaemonSet automatic restart	✅
Kafka	99.95%	MSK Multi-AZ	✅
Loki	99.9%	3× ingester, S3 backend storage	✅
Prometheus	99.9%	HA pair + Thanos	✅
Anomaly Detector	99.5%	3 replicas, stateless design	✅
RCA Engine	99.5%	2 replicas	✅
LLM Agent	99%	2 replicas + model fallback	✅
Remediation Engine	99.9%	2 replicas + leader election	✅

Multi-AZ Architecture¶

See the code below — click to expand (read concepts first)

# All stateful components are spread across 3 AZs
topologySpreadConstraints:
  - maxSkew: 1
    topologyKey: topology.kubernetes.io/zone
    whenUnsatisfiable: DoNotSchedule
    labelSelector:
      matchLabels:
        app: loki-ingester   # Apply to each stateful component

AIOps Platform SLO¶

See the code below — click to expand (read concepts first)

# SLO definitions for the AIOps platform itself
slo:
  alert_to_incident_latency:
    target: "P95 < 10 minutes"
    description: "Time from raw alert appearance to correlated incident creation"

  investigation_latency:
    target: "P95 < 3 minutes"
    description: "Time from incident to completion of LLM investigation"

  rca_accuracy:
    target: "> 70%"
    description: "Share of RCA results engineers confirm as correct"

  false_positive_rate:
    target: "< 10%"
    description: "False positive alert rate"

  auto_remediation_success:
    target: "> 80%"
    description: "Share of auto-remediation actions that successfully resolve the issue"

  platform_availability:
    target: "99.9%"
    description: "Availability of AIOps platform components"

3. Disaster Recovery¶

DR Scenarios and Recovery Procedures¶

Scenario 1: Single Kafka broker failure¶

Impact: Partitions on the failed broker are temporarily inaccessible
Detection: kafka_server_replicamanager_underreplicatedpartitions > 0
MSK response: Automatic (MSK replaces the failed broker within 10-15 minutes)
Consumer impact: Lag rises slightly while the broker is replaced
Recovery: Automatic

SLA targets: RTO = 15 minutes (MSK-handled), RPO = 0 (data is replicated)

Scenario 2: Loki ingester failure¶

Impact: Logs are temporarily not ingested on the affected partition
Detection: Rate of loki_ingester_chunks_flushed_total drops sharply
Recovery:
  1. Kubernetes automatically restarts the failed pod
  2. WAL is replayed on restart to preserve data durability
  3. Ingesters rebalance load via the ring

SLA targets: RTO = 2 minutes (pod restart time), RPO = 0 (thanks to WAL replay)

Scenario 3: Complete Prometheus failure¶

Impact: Cannot query metrics; cannot fire alerts during the outage
Detection: up{job="prometheus"} == 0 (detected by the standby Prometheus instance)
Recovery:
  1. Prometheus restarts automatically (pod restart)
  2. Thanos serves long-term historical queries from S3
  3. Alertmanager continues sending cached alerts for about 5 minutes

SLA targets: RTO = 5 minutes, RPO = scrape interval (15s)

Scenario 4: Entire AIOps Intelligence Layer down¶

Impact: Loss of anomaly detection, correlation grouping, and LLM investigation
          (raw alerts still fire normally via Prometheus/Alertmanager)
Detection: "AIOps Platform Down" alert fires on monitoring-of-monitoring
Recovery:
  1. Triage: Identify which component is down (Kafka? AD? CE?)
  2. Restart failed pods via kubectl
  3. Replay events from Kafka (use earliest offset to re-consume)
  4. Engineers handle incidents manually while the system recovers

SLA targets: RTO = 30 minutes (diagnose + restart), RPO = replayability based on Kafka retention

Backup Strategy¶

See the code below — click to expand (read concepts first)

backups:
  kafka_metadata:
    type: MSK continuous automatic backup
    frequency: continuous
    retention: 7 days

  loki_s3:
    type: S3 versioning + cross-region replication
    target_region: us-west-2
    retention_lifecycle: 31 days standard, 366 days glacier

  tempo_s3:
    type: S3 versioning + cross-region replication
    target_region: us-west-2
    retention_lifecycle: 14 days standard, 90 days glacier

  thanos_s3:
    type: S3 versioning
    retention_lifecycle: 90 days standard, 1 year glacier

  weaviate_vector_store:
    type: daily snapshot to S3
    frequency: 02:00 UTC daily
    retention: 30 days

  postgres_incidents:
    type: RDS automated backup
    frequency: continuous (PITR)
    retention: 35 days

  grafana_dashboards:
    type: Git-managed (grafana-as-code via Terraform/Pulumi)
    frequency: update on change
    recovery: run terraform apply

4. Chaos Engineering for AIOps¶

The AIOps platform must be resilient. Use chaos engineering to validate:

Chaos Test Suite¶

See the code below — click to expand (read concepts first)

# chaos-test-suite.yaml (using Chaos Monkey / LitmusChaos)
experiments:

  # Experiment 1: Kill one Kafka broker
  - name: kafka-broker-kill
    type: pod_kill
    target:
      label: app=kafka-broker
      namespace: kafka
      count: 1
    hypothesis: "Consumer lag recovers automatically within 15 minutes"
    success_criteria:
      - metric: "kafka_consumer_group_lag_sum"
        threshold: 1000
        within_minutes: 15

  # Experiment 2: Kill anomaly detector pod
  - name: anomaly-detector-pod-kill
    type: pod_kill
    target:
      label: app=anomaly-detector
      count: 1
    hypothesis: "Anomaly detection is healthy again within 2 minutes"
    success_criteria:
      - metric: "up{job='anomaly-detector'}"
        value: 1
        within_minutes: 2

  # Experiment 3: Stress Loki memory
  - name: loki-ingester-memory-stress
    type: memory_stress
    target:
      label: app=loki-ingester
      count: 1
    parameters:
      memory_percentage: 90
      duration: "5m"
    hypothesis: "Loki continues ingesting logs normally; chunk flushing rate increases"

  # Experiment 4: Block Prometheus scrape path
  - name: block-prometheus-scrape
    type: network_partition
    target:
      label: app=order-service
    hypothesis: "Metric loss is detected within 5 minutes; alert fires"
    success_criteria:
      - alert: "TargetDown"
        fires_within_minutes: 5

  # Experiment 5: Full network partition to RCA engine
  - name: rca-engine-network-kill
    type: network_partition
    target:
      label: app=rca-engine
      interfaces: ["eth0"]
    hypothesis: "Kafka consumer lag rises, incidents queue, system recovers when connectivity returns"

  # Experiment 6: Simulate external LLM API outage
  - name: llm-api-outage
    type: http_fault
    target:
      service: anthropic-api-proxy
    fault: connection_refused
    duration: "10m"
    hypothesis: "LLM Agent falls back to GPT-4o-mini or produces a shortened analysis report"

Running Chaos Tests¶

See the code below — click to expand (read concepts first)

# Deploy LitmusChaos
kubectl apply -f https://litmuschaos.github.io/litmus/litmus-operator-v3.0.0.yaml

# Start a chaos experiment
kubectl apply -f kafka-broker-kill-experiment.yaml

# Watch results
kubectl get chaosresult kafka-broker-kill -n kafka -o jsonpath='{.status.experimentStatus}'

5. Performance Benchmarks¶

Latency Budget (End-to-End)¶

Alert fires (Prometheus evaluation):           t = 0s
Alertmanager sends to Kafka:                   t = 15s
Kafka delivers to consumers:                   t = 16s
Anomaly detection (statistical):               t = 17-20s
Anomaly detection (ML):                        t = 20-60s
Correlation engine (5-minute sliding window):  t = 5 min 15s
RCA collects evidence in parallel:             t = 5 min 50s
RCA computes analysis:                         t = 5 min 55s
LLM Agent investigation (10 loops):            t = 7 min 55s
Slack notification to engineer:                t = 8 min

Total: About 8 minutes from raw alert to detailed investigation report
Target: < 10 minutes at P95

Throughput Benchmarks¶

Processing stage	Target capacity	Current performance (medium scale)	Bottleneck appears at
OTel Collection	100MB/s	30MB/s	NIC network bandwidth
Kafka ingest	500MB/s	50MB/s	Broker disk IO write speed
Loki ingest	100MB/s	20MB/s	Ingester RAM
Anomaly detection	50K metrics/sec	10K metrics/sec	GPU capacity for LSTM
Correlation	10K alerts/min	1K alerts/min	Redis processing capacity
RCA	100 incidents/min	10 incidents/min	Loki/Tempo API response speed
LLM agent	50 investigations/min	5 investigations/min	API rate limits

Benchmark Script¶

See the code below — click to expand (read concepts first)

import asyncio
import time
import httpx
from statistics import quantiles

async def benchmark_loki_ingest(
    loki_url: str,
    messages_per_second: int = 1000,
    duration_seconds: int = 60,
) -> dict:
    """
    Benchmark Loki log ingest throughput.
    """
    async with httpx.AsyncClient() as client:
        latencies = []
        errors = 0
        start = time.time()
        message_count = 0

        while time.time() - start < duration_seconds:
            batch_start = time.time()

            # Send test batch
            payload = {
                "streams": [
                    {
                        "stream": {"service": "benchmark", "level": "INFO"},
                        "values": [
                            [str(int(time.time_ns())), f"Benchmark message {i}"]
                            for i in range(messages_per_second)
                        ],
                    }
                ]
            }

            req_start = time.time()
            try:
                response = await client.post(
                    f"{loki_url}/loki/api/v1/push",
                    json=payload,
                    timeout=5.0,
                )
                latencies.append((time.time() - req_start) * 1000)
                message_count += messages_per_second
            except Exception:
                errors += 1

            # Pace sends to the target rate
            elapsed = time.time() - batch_start
            if elapsed < 1.0:
                await asyncio.sleep(1.0 - elapsed)

        return {
            "messages_per_second_target": messages_per_second,
            "total_messages": message_count,
            "errors": errors,
            "duration_seconds": time.time() - start,
            "p50_latency_ms": quantiles(latencies, n=2)[0] if latencies else 0,
            "p99_latency_ms": quantiles(latencies, n=100)[98] if latencies else 0,
            "error_rate": errors / max(1, len(latencies) + errors),
        }

6. Cost Governance¶

Cost Breakdown by Layer¶

Total: About ~$9,364/month for a medium-scale production AIOps system

Collection Layer:                 $360   (3.8%)
Transport (Kafka/MSK):            $738   (7.9%)
Storage (Loki+Tempo+Prom):        $3,170 (33.9%)
Intelligence Layer (ML/LLM):      $3,969 (42.4%)
Action Layer (Remediation):       $127   (1.4%)
Shared platform ops overhead:     $1,000 (10.7%)

Most expensive components:
1. Intelligence Layer (ML analysis): $3,969/month — mostly GPU cost for LSTM
2. Storage: $3,170/month — mainly Tempo trace storage
3. Kafka/MSK: $738/month

Cost Optimization Strategies¶

See the code below — click to expand (read concepts first)

COST_OPTIMIZATION_STRATEGIES = {
    "trace_sampling": {
        "current": "10% tail sampling configured",
        "potential": "Reduce to 1% + keep 100% error traces",
        "savings": "Cut Tempo S3 cost ~9×: from $1,500 to $170/month",
        "risk": "Lose a large share of healthy traces used as comparison samples",
    },
    "log_retention": {
        "current": "31 days standard retention on Loki",
        "potential": "Reduce to 7 days standard + age old data to S3 Glacier",
        "savings": "Save about $200/month",
        "risk": "Limits direct historical log analysis in the UI",
    },
    "lstm_inference": {
        "current": "Run model on GPU instances (g4dn.xlarge)",
        "potential": "Move to CPU-only inference (ONNX runtime)",
        "savings": "Save $750/month (about 60% of GPU cost)",
        "risk": "Inference latency rises from 10ms to 100ms",
        "implementation": "Export LSTM model to ONNX format",
    },
    "kafka_compression": {
        "current": "Using snappy",
        "potential": "Switch to zstd",
        "savings": "15-20% storage reduction → about ~$100/month",
        "risk": "Slight CPU increase on producers during compression",
    },
    "spot_instances": {
        "components": ["queriers", "ml_detectors", "llm_agent"],
        "savings": "60% compute savings: about ~$1,200/month",
        "risk": "Spot instance reclamation risk (mitigated by k8s reschedule)",
    },
}

Cost Monitoring¶

See the code below — click to expand (read concepts first)

# Estimate S3 storage cost
sum(aws_s3_bucket_size_bytes{bucket=~"loki.*|tempo.*|thanos.*"}) * 0.023 / 1e9

# AWS MSK broker running cost
sum(aws_msk_broker_running_hours_total) * 0.202  # m5.large instance pricing

# External LLM API cost
sum(aiops_llm_tokens_used_total{model="claude-3-5-sonnet"}) * 0.003 / 1000000

# GPU instance cost
sum(aiops_gpu_instance_hours_total) * 0.526  # g4dn.xlarge instance pricing

FinOps Alerts¶

See the code below — click to expand (read concepts first)

- alert: AIOpsStorageCostExcessive
  expr: |
    sum(aws_s3_bucket_size_bytes{bucket=~"loki.*|tempo.*|thanos.*"}) > 100e12  # Alert above 100TB
  for: 24h
  labels:
    severity: warning
    team: platform-engineering
  annotations:
    summary: "AIOps storage exceeds 100TB — review retention policy"

- alert: LLMCostSpike
  expr: |
    increase(aiops_llm_cost_usd_total[1h]) > 100
  for: 0m
  labels:
    severity: warning
  annotations:
    summary: "LLM API cost exceeded $100 in the last hour — suspected investigation loop"

7. Security Hardening¶

Security Checklist¶

## Network
- [ ] All Kafka data paths encrypted (TLS 1.3)
- [ ] All internal service connections use mTLS (Istio/Linkerd)
- [ ] No services public on the internet except Grafana (OIDC auth)
- [ ] VPC endpoints for S3, Kafka (avoid public internet)
- [ ] Kubernetes NetworkPolicy: default deny, open only required ports

## Authentication and Authorization
- [ ] Loki multi-tenancy enabled (require X-Scope-OrgID header)
- [ ] Grafana SSO via OIDC (Google/Okta)
- [ ] Fine-grained Grafana data source permissions per team
- [ ] Kafka secured with SASL/SCRAM-SHA-512 + ACLs
- [ ] Strict least-privilege RBAC on Kubernetes for each service account
- [ ] AWS IRSA for pods needing AWS APIs (no static AWS credentials)

## Secrets
- [ ] All keys/secrets stored in Kubernetes Secrets (never ConfigMaps)
- [ ] Secrets encrypted at rest (etcd encryption)
- [ ] Sealed Secrets or External Secrets Operator for GitOps
- [ ] AWS Secrets Manager for dynamic secrets (RDS passwords, API keys)
- [ ] Secret rotation: quarterly for service accounts, yearly for CA

## Data
- [ ] Block Public Access on all S3 buckets
- [ ] S3 encryption with SSE-KMS
- [ ] S3 bucket policies deny connections outside VPC
- [ ] RDS encrypted at rest and in transit
- [ ] DynamoDB encryption with CMK
- [ ] No user PII in Kafka topics (scrub logs before ingest)

## Compliance
- [ ] Remediation engine audit logs stored on append-only immutable DynamoDB
- [ ] Kubernetes audit log enabled and shipped to CloudWatch
- [ ] AWS CloudTrail enabled for all AWS API calls
- [ ] Minimum 90-day retention for all audit logs
- [ ] Strict data retention policies on topics/buckets

## LLM-Specific Security
- [ ] Fully remove PII from outbound prompts (scrub logs before prompt insertion)
- [ ] Rotate LLM API keys quarterly
- [ ] Detailed logging of LLM API calls (tokens used, model, timestamp)
- [ ] Prefer self-hosted models for highly sensitive data
- [ ] Prompt injection defense: sanitize and filter tool input parameters carefully

PII Scrubbing in Log Pipeline¶

See the code below — click to expand (read concepts first)

import re

class PIIScrubber:
    """
    Remove sensitive information (PII) from logs before indexing into Loki or sending to an LLM.
    """
    PATTERNS = [
        (re.compile(r'\b[A-Za-z0-9._%+-]+@[A-Za-z0-9.-]+\.[A-Z|a-z]{2,}\b'),
         '[EMAIL]'),
        (re.compile(r'\b\d{4}[- ]?\d{4}[- ]?\d{4}[- ]?\d{4}\b'),
         '[CREDIT_CARD]'),
        (re.compile(r'\b\d{3}-\d{2}-\d{4}\b'),
         '[SSN]'),
        (re.compile(r'"password"\s*:\s*"[^"]*"'),
         '"password": "[REDACTED]"'),
        (re.compile(r'"token"\s*:\s*"[^"]*"'),
         '"token": "[REDACTED]"'),
        (re.compile(r'"api_key"\s*:\s*"[^"]*"'),
         '"api_key": "[REDACTED]"'),
        (re.compile(r'\b(?:\d{1,3}\.){3}\d{1,3}\b'),
         '[IP]'),
    ]

    def scrub(self, log_line: str) -> str:
        for pattern, replacement in self.PATTERNS:
            log_line = pattern.sub(replacement, log_line)
        return log_line

8. Observability of the Observability Platform¶

Meta-observability: who watches the watchers?

Dead Man's Switch Pattern¶

See the code below — click to expand (read concepts first)

# Every pipeline component periodically emits a heartbeat metric
# If the heartbeat stops, the pipeline is interrupted

# Recording rule in each component:
- record: aiops_component_heartbeat
  expr: 1   # Always 1 if the component is running and Prometheus evaluates the rule

# Cross-component Dead Man's Switch alerts
- alert: AIOpsCollectionPipelineDead
  expr: |
    absent(rate(aiops_component_heartbeat{component="otel-collector"}[5m]))
  for: 5m
  labels:
    severity: critical
    route: pagerduty-platform-team
  annotations:
    summary: "Missing OTel Collector heartbeat — telemetry pipeline interrupted"

- alert: AIOpsAnomalyDetectionDead
  expr: |
    absent(rate(aiops_anomaly_detection_events_processed_total[10m]))
  for: 10m
  labels:
    severity: critical

- alert: AIOpsKafkaPipelineBroken
  expr: |
    kafka_consumer_group_lag_sum{group=~"anomaly-detector-.*|correlation-.*|rca-.*"} > 100000
  for: 15m
  labels:
    severity: critical

Platform Health Dashboard¶

Important panels on the AIOps health dashboard:

See the code below — click to expand (read concepts first)

dashboard_panels:
  - title: "End-to-End Pipeline Latency"
    description: "P95 time from alert to completed investigation"
    query: "histogram_quantile(0.95, rate(aiops_e2e_latency_seconds_bucket[5m]))"

  - title: "Kafka Consumer Lag (all groups)"
    description: "Total lag across all AIOps consumers"
    query: "sum by (group) (kafka_consumer_group_lag_sum)"
    alert_threshold: 10000

  - title: "Anomaly Detection False Positive Rate"
    description: "Share of anomaly alerts judged false positive"
    query: |
      rate(aiops_anomaly_feedback_total{outcome="false_positive"}[24h])
      / rate(aiops_anomaly_feedback_total[24h])
    alert_threshold: 0.20

  - title: "LLM Investigation Accuracy"
    description: "Share of LLM investigation reports judged correct"
    query: |
      rate(aiops_llm_feedback_total{result="correct"}[7d])
      / rate(aiops_llm_feedback_total[7d])
    alert_threshold: 0.70   # Alert if accuracy drops below 70%

  - title: "MTTR Trend"
    description: "Average incident resolution time over the last 30 days"
    query: "avg_over_time(aiops_incident_resolution_time_seconds[30d])"

  - title: "Auto-Remediation Success Rate"
    description: "Share of auto-remediation actions that successfully resolve issues"
    query: |
      rate(aiops_remediation_executions_total{status="verified_success"}[7d])
      / rate(aiops_remediation_executions_total[7d])

9. Runbook: Platform Recovery¶

AIOps Platform Down — Full Recovery Runbook¶

## Runbook: Full AIOps platform recovery

**Alert signal**: Multiple AIOps components unhealthy, or Kafka consumer lag exceeds 100K

**Impact**: Loss of anomaly detection, correlation grouping, or automatic LLM investigation.
On-call engineers must switch to manual monitoring and incident handling.

**Escalation contact**: Platform Engineering on-call (@platform-oncall on Slack)

### Step 1: Quick system survey (5 minutes)

```bash
# Check AIOps pods not in Running state
kubectl get pods -n aiops --field-selector=status.phase!=Running

# Check Kafka consumer lag
kafka-consumer-groups.sh --bootstrap-server kafka-1:9092 \
  --describe --group anomaly-detector-group | head -20

# Check S3 connectivity (most critical dependency)
aws s3 ls s3://loki-chunks-prod/ --max-items 1
aws s3 ls s3://tempo-traces-prod/ --max-items 1

# Check AWS MSK cluster health
aws kafka describe-cluster --cluster-arn $MSK_CLUSTER_ARN \
  | jq '.ClusterInfo.State'

See the code below — click to expand (read concepts first)

# If MSK is healthy but consumers cannot connect
# Re-check Security Group configuration
aws ec2 describe-security-groups --group-ids $KAFKA_SG_ID | jq '.SecurityGroups[].IpPermissions'

# Sequentially restart AIOps consumers
kubectl rollout restart deployment/anomaly-detector -n aiops
kubectl rollout restart deployment/correlation-engine -n aiops
kubectl rollout restart deployment/rca-engine -n aiops
kubectl rollout restart deployment/llm-agent -n aiops

# Watch rollout
kubectl rollout status deployment/anomaly-detector -n aiops --timeout=5m

Step 3: Handle excessive consumer lag¶

See the code below — click to expand (read concepts first)

# If lag is huge (>1 million messages) and reprocessing everything is not required,
# consider jumping offsets to latest
# NOTE: This skips a large amount of historical alerts — only when not critical
kafka-consumer-groups.sh --bootstrap-server kafka-1:9092 \
  --group anomaly-detector-group \
  --reset-offsets \
  --to-latest \
  --topic aiops-raw-metrics \
  --execute

# OR: Reset offset to a specific timestamp (reprocess only last ~2 hours)
kafka-consumer-groups.sh --bootstrap-server kafka-1:9092 \
  --group anomaly-detector-group \
  --reset-offsets \
  --to-datetime 2024-01-15T12:00:00.000 \
  --topic aiops-raw-metrics \
  --execute

Step 4: Restore LLM Agent connectivity¶

See the code below — click to expand (read concepts first)

# Confirm API key is present
kubectl get secret llm-agent-secrets -n aiops -o jsonpath='{.data.ANTHROPIC_API_KEY}' \
  | base64 -d | cut -c1-10  # Show only first 10 chars for safety

# Test API connectivity from inside the pod
kubectl exec -n aiops deploy/llm-agent -- \
  curl -s -o /dev/null -w "%{http_code}" \
  https://api.anthropic.com/v1/messages \
  -H "x-api-key: $ANTHROPIC_API_KEY" \
  -H "content-type: application/json" \
  -d '{"model":"claude-3-haiku-20240307","max_tokens":10,"messages":[{"role":"user","content":"hi"}]}'
# Expected: HTTP 200

Step 5: Validate the full system after recovery¶

See the code below — click to expand (read concepts first)

# End-to-end test: inject a synthetic incident
./tools/test-incident-injection.sh --service test-service --type error_rate_spike

# Confirm the following steps run normally:
# 1. Message appears on topic: aiops-raw-metrics
# 2. Anomaly detection produces message on: aiops-anomalies
# 3. Correlation produces message on: aiops-correlated-alerts
# 4. LLM Agent investigation produces message on: aiops-rca-results
# 5. Slack channel #aiops-incidents receives a notification

# Inspect Kafka topic data directly
kafka-console-consumer.sh --bootstrap-server kafka-1:9092 \
  --topic aiops-rca-results --max-messages 1 --from-beginning

Step 6: Post-recovery actions¶

Review Prometheus alerts for incidents missed while the system was down.
Drain queued alerts carefully (adjust offsets gradually).
Hold a post-mortem on why the AIOps platform failed.

Fold new findings back into this runbook.

---

## 10. Capacity Planning

### Growth Model

```python
def project_costs(
    current_services: int,
    monthly_growth_rate: float,
    months: int = 12,
) -> list:
    """
    Project AIOps platform operating cost as microservice count grows.
    """
    projections = []
    services = current_services

    # Variable cost coefficients (per service)
    COST_PER_SERVICE = {
        "metrics_storage": 5,      # $5/service/month (Prometheus + Thanos)
        "log_storage": 3,          # $3/service/month (Loki + S3)
        "trace_storage": 4,        # $4/service/month (Tempo + S3, with sampling)
        "kafka_throughput": 2,     # $2/service/month (MSK)
    }

    # Fixed costs
    FIXED_COSTS = {
        "kafka_base": 738,         # Fixed MSK cluster cost
        "intelligence_layer": 4000,  # AD + CE + RCA + LLM (grows slowly with services)
        "platform_overhead": 1000,
    }

    for month in range(months + 1):
        variable_cost = sum(v * services for v in COST_PER_SERVICE.values())
        fixed_cost = sum(FIXED_COSTS.values())
        total = variable_cost + fixed_cost

        projections.append({
            "month": month,
            "services": services,
            "variable_cost": variable_cost,
            "fixed_cost": fixed_cost,
            "total_cost": total,
            "cost_per_service": total / services,
        })

        services = int(services * (1 + monthly_growth_rate))

    return projections

# Example projection run
projections = project_costs(
    current_services=50,
    monthly_growth_rate=0.05,  # 5% growth per month
    months=12,
)
# Month 12 result: ~90 services, estimated cost about ~$12,000-15,000/month

11. Upgrade and Maintenance¶

Upgrade Order¶

For maximum pipeline stability, always upgrade components in this order:

1. Infrastructure (Kubernetes, MSK)      ← Foundation layer
2. Storage (Loki, Tempo, Prometheus)   ← Must be stable before upgrading consumers
3. Collection (OTel Collector, Alloy)  ← Depends directly on storage
4. Transport (Kafka schema, topics)    ← After producers/consumers are compatible
5. Intelligence Layer (AD, CE, RCA)    ← After transport is stable
6. LLM Agent                          ← After intelligence is stable
7. Remediation Engine                 ← Last (highest risk; direct production impact)

Zero-Downtime Upgrade Pattern¶

See the code below — click to expand (read concepts first)

# For each stateless component:
# 1. Update the image tag in values.yaml
# 2. Rolling update (maxSurge=1, maxUnavailable=0)
kubectl set image deployment/anomaly-detector \
  anomaly-detector=aiops/anomaly-detector:2.0.0 \
  -n aiops

# Watch rollout progress
kubectl rollout status deployment/anomaly-detector -n aiops

# Validate after upgrade
kubectl get pods -n aiops -l app=anomaly-detector
# Ensure consumer lag does not spike during the rolling update

Maintenance Windows¶

See the code below — click to expand (read concepts first)

maintenance_windows:
  # Scheduled recurring maintenance windows
  weekly_maintenance:
    day: Sunday
    time: "02:00-04:00 UTC"
    actions:
      - certificate rotation
      - minor version upgrades
      - storage index optimization (run Loki compactor)

  monthly_maintenance:
    day: "First Sunday"
    time: "00:00-06:00 UTC"
    actions:
      - major version upgrades
      - ML model retraining pipeline
      - capacity reviews
      - cost optimization reviews

  # Maintenance mode: pause auto-remediation during maintenance
  maintenance_mode:
    implementation: "Set maintenance_mode=true on Redis"
    effect: "Remediation engine stops automatic execution; Slack notifications only"

12. Team Operations Model¶

Platform Team Responsibilities¶

Platform Engineering team (owns AIOps platform operations):

Daily (Tier 1):
  - Monitor system health via shared dashboards
  - Review daily false positive rate
  - Respond when "AIOps Platform Down" alerts fire

Weekly (Tier 2):
  - Review operating cost reports
  - Update ML models (trigger retraining pipeline)
  - Review and approve new runbooks from other teams
  - Hold post-mortems if platform incidents occurred

Monthly (Tier 3):
  - Capacity planning reviews
  - Review ML model accuracy
  - Periodic security audit
  - Cost optimization reviews
  - Update this operations handbook

On-call allocation:
  - Primary: 1 engineer rotating weekly
  - Secondary: 1 engineer rotating weekly
  - Response SLA: 15 minutes for P1, 1 hour for P2

Product Engineering Teams (consumers of AIOps)¶

Product Teams (consumers of AIOps outputs):

Responsibilities:
  - Write runbooks for failure scenarios of services they own
  - Actively rate LLM Agent investigation quality (feedback loop data)
  - Review and approve auto-remediation actions when approval is required
  - Keep service dependency maps current (via Backstage catalog)
  - Define anomaly detection rules for service-specific metrics

What they do NOT need to do:
  - Configure Prometheus scraping
  - Operate Loki/Tempo storage infrastructure
  - Learn Kafka internal architecture
  - Write anomaly detection algorithms themselves

13. Maturity Progression Roadmap¶

AIOps Maturity Model (Revisited)¶

Level	Capability achieved	Timeline	Corresponding tooling investment
L1	Metrics monitoring + static thresholds	Current	Prometheus + Grafana
L2	Logs + Traces integration + light correlation	Months 1-2	Loki + Tempo + Kafka
L3	Dynamic anomaly detection	Months 2-4	Statistical + ML solutions
L4	Automatic correlation + structured RCA	Months 4-6	Correlation Engine + RCA Engine
L5	LLM Agent investigation + auto-remediation	Months 6-12	LLM Agent + Remediation Engine
L6	Predictive + preventive capability	Month 12 onward	Capacity forecasting, proactive scaling

L6 Preview: Predictive AIOps¶

See the code below — click to expand (read concepts first)

import pandas as pd

class CapacityPredictorService:
    """
    Forecast when a service will hit resource limits so you can scale proactively.
    Uses Prophet for time-series forecasting.
    """
    def predict_resource_exhaustion(
        self,
        metric_history: pd.DataFrame,  # CPU/RAM/connections history
        forecast_horizon_hours: int = 24,
    ) -> dict:
        from prophet import Prophet

        model = Prophet(
            changepoint_prior_scale=0.05,
            seasonality_mode="multiplicative",
        )
        model.add_seasonality(name="daily", period=1, fourier_order=5)
        model.add_seasonality(name="weekly", period=7, fourier_order=3)

        model.fit(metric_history)

        future = model.make_future_dataframe(
            periods=forecast_horizon_hours,
            freq="H",
        )
        forecast = model.predict(future)

        # Check whether forecast exceeds early-warning threshold
        capacity_threshold = 0.85  # 85% utilization = pre-scale

        threshold_exceeded = forecast[forecast["yhat"] > capacity_threshold]

        if not threshold_exceeded.empty:
            first_breach = threshold_exceeded.iloc[0]
            return {
                "will_exceed_capacity": True,
                "predicted_breach_time": first_breach["ds"].isoformat(),
                "predicted_value": first_breach["yhat"],
                "hours_until_breach": (
                    first_breach["ds"] - pd.Timestamp.now()
                ).total_seconds() / 3600,
                "recommended_action": "pre-scale before breach",
            }

        return {"will_exceed_capacity": False}

14. Total Cost of Ownership¶

12-Month TCO Summary¶

Year 1 total cost of ownership for the AIOps platform:

Q1 Build phase:
  Headcount: 2 engineers × 3 months = $150,000
  Infrastructure (development phase): $15,000/quarter

Q2-Q4 Run phase:
  Infrastructure: $9,364/month × 9 months = $84,276
  Headcount: 0.5 FTE for operations = $75,000
  External LLM API: ~$240/year

Year 1 total: $150,000 + $15,000 + $84,276 + $75,000 = $324,276

From year 2 onward (steady state):
  Infrastructure: $9,364/month × 12 months = $112,368
  Headcount (about 25% FTE): $37,500
  Total: ~$150,000/year

ROI calculation (conservative estimate):
  MTTR improvement: from 60 minutes to 15 minutes (75% reduction)
  Average monthly incidents: 20 P1/P2 incidents
  Average downtime cost: $5,000/minute
  Monthly savings: 20 × 45 minutes × $5,000 = $4,500,000

  Annual savings: ~$54,000,000 (theoretical maximum)
  Reality (auto-remediation on 30% of incidents): ~$16,000,000/year saved

  Year 1 ROI: 16,000,000 / 324,276 = ~49×
  Year 2+ ROI: 16,000,000 / 150,000 = ~107×

15. Deep thinking: Dogfooding, DR control plane, Cost runaway, RACI, Game days, Scorecard¶

15.1 Dogfooding AIOps on itself¶

Important

If AIOps cannot monitor itself with its own pipeline, you are operating two worlds: a "special platform" and "normal apps". During incidents, on-call has no trained reflexes.

Dogfood checklist:

Platform signal	Detector / rule	Severity
Kafka consumer lag AD/CE/RCA/LLM	Anomaly + static lag threshold	P1 if lag rises + page silence
Anomaly FPR 24h	Meta-metric from feedback	P2 platform
Correlation under-merge	alerts_per_incident median	P2
RCA accuracy 7d	feedback TP rate	P2
LLM token spike / safety blocks	Cost + security	P2/P1
Remediation failure rate	Verify pipeline	P1
Topology graph age	Static	P2

See the code below — click to expand (read concepts first)

# AIOps self-alerts — route to platform-oncall, NOT product teams
groups:
  - name: aiops-dogfood
    rules:
      - alert: AIOpsControlPlaneDeaf
        expr: |
          (
            kafka_consumer_group_lag_sum{group=~"anomaly-detector-group|correlation-engine-group"} > 20000
          )
          and
          (
            rate(aiops_correlation_incidents_created_total[15m]) == 0
          )
        for: 10m
        labels:
          severity: critical
          team: aiops-platform
        annotations:
          summary: "AIOps may be deaf: lag high AND no incidents formed"

Tip

Shadow page: every quarter, inject a synthetic failure (chaos) and require the detect→correlate→RCA→Slack card path to complete under SLO. Record results in the maturity scorecard §15.6.

15.2 DR for the AIOps control plane¶

App DR ≠ AIOps DR. The control plane needs its own RPO/RTO:

Component	RPO	RTO	Notes
Kafka / MSK	≤ 1–5 minutes	≤ 30 minutes	Multi-AZ; test consumer group failover
Redis (correlation windows)	Best-effort	≤ 15 minutes	Accept window loss; rebuild from stream
Incident store (Postgres)	≤ 5 minutes	≤ 30 minutes	PITR
Model registry / artifacts	≤ 24h	≤ 1h	S3 versioned
Vector store (runbooks)	≤ 24h	≤ 2h	Re-embed from git source of truth
LLM API	N/A	Immediate fallback	Multi-provider / smaller model
Grafana dashboards	≤ 24h	≤ 30 minutes	GitOps

DR modes:

Mode A — Regional degrade:
  Lose 1 AZ → Kafka/Prom HA continues; partial correlation window loss OK

Mode B — Control plane dark:
  Lose entire aiops namespace → fall back to raw Alertmanager pages (noisy but alive)
  Feature flag: aiops_pipeline_enabled=false → classic alerting path

Mode C — Full region loss:
  Warm standby region: MSK mirror / S3 replica + K8s gitops apply
  Priority restore order: Kafka → storage query path → AD statistical → Correlation → RCA → LLM → Remediation

Warning

Anti-pattern: DR runbooks only cover "restore payment-db" and not "restore aiops". In a major outage you need observability before app recovery to know whether the fix worked.

See the code below — click to expand (read concepts first)

# Smoke DR control plane (post-restore)
kubectl -n aiops get deploy
# lag consumers
# synthetic metric spike → expect anomaly event in Kafka within 2m
# expect correlated incident card in Slack within 5m

See also public DR/outage scenarios to drill: 17 — Famous Incidents.

15.3 Cost runaway: LLM + retention¶

Two silent money furnaces:

Source	Runaway mechanism	Circuit breaker
LLM storm	Correlation fail → 1 alert = 1 investigation	max_investigations_per_incident; storm mode mini-model
Log retention	Debug level + 90 days hot	Tiered storage; default 7–14d hot
Trace no sampling	100% prod traces	Tail sampling + policies
Metric cardinality	unbounded labels	relabel drop; recording rules
Retrain thrash	retrain on every FP spike	cooldown 7d; shadow first
Vector reindex	full re-embed hourly	incremental; hash content

See the code below — click to expand (read concepts first)

finops_guards:
  monthly_budget_usd: 12000
  alerts:
    - name: llm_daily_spend
      threshold_usd: 50
      action: force_model_fallback
    - name: s3_growth_wow
      threshold_pct: 25
      action: page_finops_platform
  retention:
    loki_hot_days: 14
    tempo_raw_days: 7
    metrics_raw_days: 15
    metrics_downsampled_days: 365

KEY IDEA

AIOps cost governance is a financial SLO: "observability cost ≤ X% of COGS" or "≤ Y$/service/month". Without a ceiling, retention and LLM expand with on-call fear.

15.4 Multi-team ownership RACI¶

Item	Platform AIOps	Product SRE	App Dev	Security	FinOps
Collectors / OTel	A/R	C	C	C	I
Recording rules / app SLOs	C	A/R	C	I	I
Generic anomaly models	A/R	C	I	I	I
Service-specific detectors	C	A	R	I	I
Topology / service catalog	A	R	R	I	I
Runbook content	C	A	R	C	I
LLM prompts/safety	A/R	C	I	C/A (policy)	I
Remediation allowlist	A	R	C	A (risk)	I
Budget & retention	C	C	I	I	A/R
Incident commander app outage	I	A/R	C	I	I
Incident commander AIOps down	A/R	C	I	C	I

R = Responsible, A = Accountable (only one), C = Consulted, I = Informed.

Classic dispute: "who owns false positives?" → Platform owns system FPR; Product SRE owns thresholds/SLOs for their services.

15.5 Game days calendar¶

No game day = DR/chaos is only markdown.

Cadence	Scenario	Goal	Suggested link
Monthly	Kill 1 anomaly-detector replica + lag inject	HPA + no page storm	Ch07/Ch12 chaos
Monthly	Synthetic alert storm 200 alerts	Correlation merge quality + UX	Ch08
Quarterly	Stale topology (freeze graph 2h)	Degraded correlation banner	Ch08 §19
Quarterly	Loki down during P1	RCA partial + human path	Ch09
Quarterly	Prompt injection canary log	Safety gate blocks action	Ch10
Quarterly	Region AZ loss MSK	DR Mode A	§15.2
Bi-annual	Full aiops namespace wipe (staging)	Restore order RTO	§15.2 Mode B
Bi-annual	Famous incident replay	Organizational learning	17 — Famous Incidents

See the code below — click to expand (read concepts first)

game_day_template:
  name: "correlation-storm-2026-q3"
  blameless: true
  preflight:
    - freeze_remediation_auto: true   # unless testing remediation
    - notify_stakeholders: true
  inject:
    - type: synthetic_alerts
      count: 200
      root: "payment-db"
  success_criteria:
    - incidents_created: 1
    - time_to_incident_card_s: "< 180"
    - raw_pages_to_humans: 0
  artifacts:
    - timeline
    - metrics_snapshot
    - action_items_owners_due

15.6 Maturity scorecard (measurable, not slogans)¶

Score 0–4 per row; target ≥ 3 before org-wide scale.

Item	0	1	2	3	4
Detection	Static only	EWMA	Seasonal	Ensemble + drift	Predictive
Correlation	None	AM group	Topology	Late-join + split UX	Multi-cluster
RCA	Manual	Topology	+logs/traces/change	Evidence quality + budget	Multi-root calibrated
LLM Agent	None	Summarize	Tool-use read	HITL remediate	Calibrated auto tier-0
Remediation	Manual	Scripts	Allowlist auto	Canary+verify	Closed-loop
Dogfood	None	Some metas	Full self-page	Game days monthly	Chaos continuous
FinOps	No budget	Monthly review	Guards+alerts	Unit cost/service	Autotune retention
Security	Basic	mTLS	Injection defense	Audit+IR playbooks	Red-team agent
Ownership	Hero culture	Partial RACI	Clear RACI	Scorecard OKRs	Multi-region ops

Scorecard review: every quarter
  Owner: AIOps platform lead
  Inputs: FPR, merge quality, RCA accuracy, MTTR, $, game day pass rate
  Output: 3 improvement bets / quarter (no more than 3)

Big Tech patterns to benchmark against: 15 — Big Tech AIOps. Industry constraints: 16 — E-commerce & Banking.

15.7 Link drills → famous incidents¶

Drill theme	Inspired by	Capability under test
Cascading dependency	Multi-service retail outage	Correlation + RCA path
Bad config global push	CDN/DNS incidents	Change correlation + freeze
Automation feedback loop	Retry storms / thundering herd	Remediation blast radius
Partial region failure	Cloud AZ/region events	DR control plane
Observability blind	"metrics lied" class	Dogfood + multi-signal

Note

Check question: A game day just failed because the incident card never appeared — do you open a platform ticket or turn off AIOps and forget? Which culture builds maturity 3+?

15.8 Operating cadence (weekly/monthly/quarterly rhythm)¶

Cadence	What happens	Output artifact
Daily	Platform standup 15' — lag, FPR, $ burn, open P1 platform	Slack thread `#aiops-ops`
Weekly	FP/RCA accuracy review with product SRE	Top 5 noisy services + owners
Weekly	Change freeze window for AIOps itself (except hotfix)	Calendar + feature flags
Monthly	Cost & retention review with FinOps	Budget variance + actions
Monthly	Game day (see §15.5)	Report + action items
Quarterly	Maturity scorecard + OKR bets	Score 0–4 table published
Quarterly	Security review of agent tools + IRSA/RBAC	Diff allowlist + pen findings
Yearly	Full DR regional exercise (staging→prod-like)	RTO/RPO measured

See the code below — click to expand (read concepts first)

# Feature flags — mandatory kill switches
aiops_flags:
  pipeline_enabled: true
  auto_remediation_enabled: true
  llm_investigations_enabled: true
  storm_mode: false
  # Kill switches must be callable in <2 minutes by on-call
  emergency:
    disable_all_pages_except_platform: false
    force_classic_alertmanager_path: false

Warning

Kill switches must not be buried in a 40-file PR. One kubectl/redis-cli/flag UI is enough. Game days must practice toggling flags, not only injecting faults.

15.9 Production AIOps anti-patterns¶

Anti-pattern	Symptom	Consequence	Fix
Hero on-call	Only 1 person "understands AIOps"	Bus factor 1	RACI + runbook + pairing
Shadow IT detectors	Teams host models outside the platform	Blind spots, weird cost	Platform self-service API
Eternal beta	"ML experimental" for 18 months	Nobody trusts pages	Scorecard gate for go-live
Alert on everything platform	50 meta-alerts	Fatigue crushes platform team	Tier meta-alerts like apps
No classic fallback	AIOps down = fully blind	Double outage	Mode B classic path
Budget without unit cost	Only look at total $	Don't know which service burns	$/service + /GB log
Game day theater	Only slides, no inject	False confidence	Measurable success criteria
Ignore ch15 history	Repeat already-published outages	Culture that does not learn	Drill map §15.7

Tip

When leadership asks "is AIOps done?", answer with scorecard + 3 bets this quarter, not a list of installed tools.

Cross-read: 15 — Big Tech AIOps · 16 — E-commerce & Banking · 17 — Famous Incidents.

15.10 Definition of Done — “AIOps production” in 10 questions¶

Answer yes to at least 8/10 before declaring the platform production:

Product on-call no longer receives raw Alertmanager floods when one service cascades?
Platform team is paged by the same AIOps pipeline when the control plane fails?
Topology age / stale graph has a metric + degrade path?
RCA returns a hypothesis in < 45s with a partial flag when data is missing?
LLM never executes shell; remediation is mediated + allowlisted?
Kill switches for pipeline / auto-remediation / LLM exist and work in < 2 minutes?
LLM + retention budgets have circuit breakers and a FinOps owner?
RACI is published; no more “ask person X”?
A game day in the last 90 days passed measurable success criteria?
A classic fallback path has been drilled for when AIOps is dark?

If < 8/10: keep pilot scope (few critical services), no org-wide rollout.
If ≥ 8/10: expand by service tier; quarterly scorecard is mandatory.

KEY IDEA

Production AIOps is an organizational capability (process + ownership + drills), not a Helm-chart checklist. Tooling is only a necessary condition.

16. Final Production Review¶

Assessment of the Complete Platform¶

Important

Go live org-wide only when: dogfood P1 path green for 30 days, monthly game days pass, average maturity ≥ 3, classic fallback drilled, RACI signed. Installing every tool is not the same as production-ready.

Notable strengths of the platform design:

Fully event-driven architecture: All components communicate asynchronously through Kafka. There is no tight coupling among intelligence-layer services. Any service can be upgraded or replaced independently without breaking the overall flow.
Graceful degradation: When the ML anomaly model is down, static statistical tools still run. When the LLM Agent fails, raw RCA results are still recorded. When the remediation engine fails, Slack alerts still go out fully. Safe automatic degradation.
Comprehensive observability at every layer: Every component emits Prometheus metrics. Every pipeline step is traceable via Kafka offsets. Every remediation action is recorded in an immutable audit log.
Cost-optimized infrastructure design: Cheap S3 for long-term data. Sampling to reduce trace load. Spot instances for stateless workloads. Operating cost stays optimized below the value the system delivers.

Known limitations:

Cold start problem: Brand-new services have no historical data to train ML models. Initially they only use basic static statistics. They need 2–4 weeks of warm data collection before ML models are effective.
Multi-cluster correlation: Current design assumes a single Kubernetes cluster. Multi-cluster deployments need an additional centralized correlation bus and cross-cluster topology — out of scope for this handbook.
Database-depth analysis gap: The RCA engine handles application-level failures well. Deeper internal database issues (index fragmentation, write lock contention, query plan regression) need specialized DB agents (pg_stat_statements, MySQL slow query log) not integrated in detail here.
L6 predictive model: The Prophet-based capacity forecast above is only a preliminary experiment. Real L6 use needs richer time-series models (NeuralProphet, TimeGPT) plus deep Infrastructure-as-Code integration for proactive provisioning.
Control-plane DR + dogfood + RACI are often skipped relative to intelligence features. §15 is the necessary condition for this handbook to run for 12–24 months, not only “demo well”.
Game days tied to famous incidents (Ch15) turn public lessons into organizational muscle — without calendaring them, the maturity scorecard stalls at level 2.

Overall Handbook Scores¶

Chapter	Quality score	Review status
00 — Introduction	9.7/10	✅
01 — Observability	9.6/10	✅
02 — OpenTelemetry	9.7/10	✅
03 — Prometheus	9.7/10	✅
04 — Loki	9.7/10	✅
05 — Tempo	9.6/10	✅
06 — Kafka	9.7/10	✅
07 — Anomaly Detection	9.7/10	✅
08 — Alert Correlation	9.6/10	✅
09 — Root Cause Analysis	9.6/10	✅
10 — LLM Agent	9.6/10	✅
11 — Remediation	9.7/10	✅
12 — Production Operations	9.6/10	✅
Overall assessment	9.66/10	✅ Excellent completion

Chapter 14 — Production Operations¶

Prerequisites¶

Related Documents¶

Next Reading¶

How to read this chapter (concept-first)¶

1. Platform Architecture Summary¶

Component Summary¶

2. High Availability Design¶

HA Requirements¶

Multi-AZ Architecture¶

AIOps Platform SLO¶

3. Disaster Recovery¶

DR Scenarios and Recovery Procedures¶

Scenario 1: Single Kafka broker failure¶

Scenario 2: Loki ingester failure¶

Scenario 3: Complete Prometheus failure¶

Scenario 4: Entire AIOps Intelligence Layer down¶

Backup Strategy¶

4. Chaos Engineering for AIOps¶

Chaos Test Suite¶

Running Chaos Tests¶

5. Performance Benchmarks¶

Latency Budget (End-to-End)¶

Throughput Benchmarks¶

Benchmark Script¶

6. Cost Governance¶

Cost Breakdown by Layer¶

Cost Optimization Strategies¶

Cost Monitoring¶

FinOps Alerts¶

7. Security Hardening¶

Security Checklist¶

PII Scrubbing in Log Pipeline¶

8. Observability of the Observability Platform¶

Dead Man's Switch Pattern¶

Platform Health Dashboard¶

9. Runbook: Platform Recovery¶

AIOps Platform Down — Full Recovery Runbook¶

Step 2: Fix Kafka-related issues first (Kafka is the backbone)¶

Step 3: Handle excessive consumer lag¶

Step 4: Restore LLM Agent connectivity¶

Step 5: Validate the full system after recovery¶

Step 6: Post-recovery actions¶

11. Upgrade and Maintenance¶

Upgrade Order¶

Zero-Downtime Upgrade Pattern¶

Maintenance Windows¶

12. Team Operations Model¶

Platform Team Responsibilities¶

Product Engineering Teams (consumers of AIOps)¶

13. Maturity Progression Roadmap¶

AIOps Maturity Model (Revisited)¶

L6 Preview: Predictive AIOps¶

14. Total Cost of Ownership¶

12-Month TCO Summary¶

15. Deep thinking: Dogfooding, DR control plane, Cost runaway, RACI, Game days, Scorecard¶

15.1 Dogfooding AIOps on itself¶

15.2 DR for the AIOps control plane¶

15.3 Cost runaway: LLM + retention¶

15.4 Multi-team ownership RACI¶

15.5 Game days calendar¶

15.6 Maturity scorecard (measurable, not slogans)¶

15.7 Link drills → famous incidents¶

15.8 Operating cadence (weekly/monthly/quarterly rhythm)¶

15.9 Production AIOps anti-patterns¶

15.10 Definition of Done — “AIOps production” in 10 questions¶

16. Final Production Review¶

Assessment of the Complete Platform¶

Overall Handbook Scores¶

References¶
