Chapter 10 — Alert Correlation Engine¶

Alert correlation is the middle buffer between raw anomaly detection and human attention. Its job: take hundreds of concurrent anomaly events caused by a single root cause and compress them into one coherent incident with full context. This is where AIOps often shows the clearest ROI.

Alert correlation engine

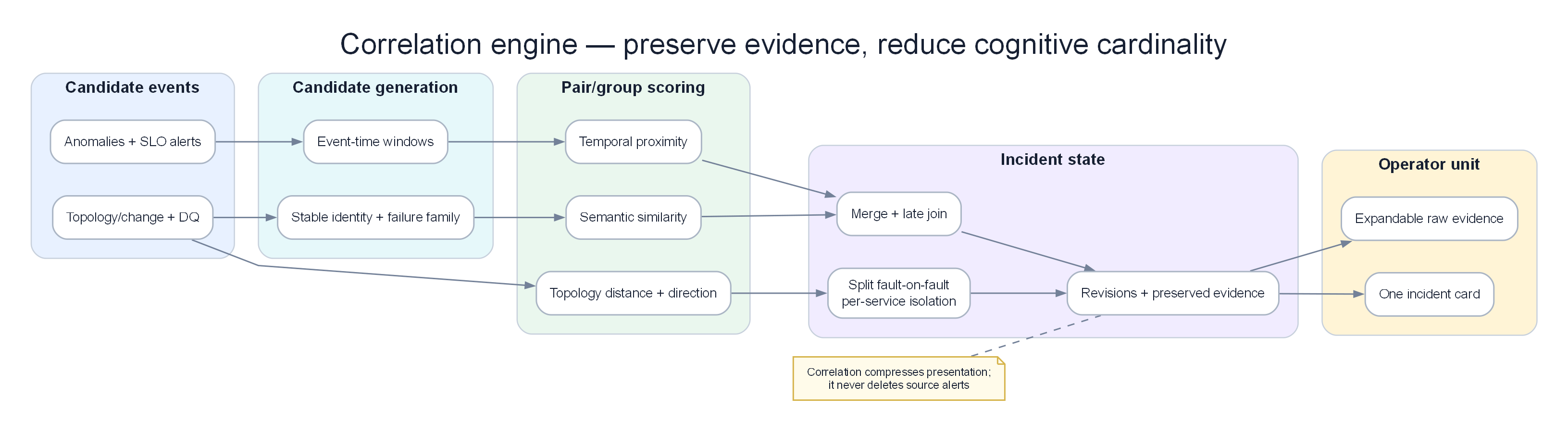

Poster: normalize, deduplicate, group by topology and time, then split independent overlapping faults.

Prerequisites¶

09 — Anomaly Detection — produces the anomaly events consumed here
03 — Prometheus — alert source via Alertmanager
07 — Kafka — transport layer for anomaly events

11 — Root Cause Analysis — receives correlated alert groups as input
12 — LLM Agent — uses correlation context for incident investigation
03 — Prometheus — Alertmanager grouping (simple correlation level)
14 — Production Operations — correlation engine SLOs, storm drills
15 — Big Tech AIOps — correlation / incident grouping at hyperscaler scale
16 — E-commerce & Banking — multi-region cascade, payment fan-out storms
17 — Famous Incidents — case studies of alert storms and correlated outages

Next Reading¶

After this chapter, continue to 11 — Root Cause Analysis.

How to read this chapter (concept-first)¶

Concepts first — code second

From chapter 09 onward, prefer: problem → idea → input data → algorithm/model → output → pros/cons → when to use. Implementation lives under See the code below (click to expand). Goal: understand why it works on AIOps telemetry, not only copy-paste snippets.

Step	Question
1. Problem	What pain does this solve (noise, cascade, MTTR…)?
2. Idea	2–3 sentence intuition, no formulas
3. Data in	Which metrics/logs/traces/events, windows, features?
4. Algorithm	Computation steps / model flow
5. Output	Event schema, score, rank, action proposal?
6. Trade-offs	Pros / cons / cost / explainability
7. When	When to use — and when not to

1. Why Alert Correlation?¶

KEY IDEA

Correlation does not "reduce alerts" by throwing information away — it compresses event cardinality into one cognitive unit (an incident) that a human brain can process in <2 minutes. The largest AIOps ROI often sits at this layer, not in LSTM or LLM.

Tip

Success metric for correlation: not "alerts suppressed %", but median alerts-per-incident (target 5–20), time-to-first-coherent-incident, and split/merge correction rate after postmortem.

The Alert Storm Problem¶

A single microservice failure can trigger a cascading chain of hundreds of alerts:

Root cause: payment-service exhausted its database connection pool

Alert chain fired (within 2 minutes):
1.  ALERT: payment-service error_rate > 5% [payment-service]
2.  ALERT: payment-service latency_p99 > 2s [payment-service]
3.  ALERT: payment-service cpu_usage > 80% [payment-service-pod-1]
4.  ALERT: payment-service cpu_usage > 80% [payment-service-pod-2]
5.  ALERT: payment-service cpu_usage > 80% [payment-service-pod-3]
6.  ALERT: order-service error_rate > 5% [order-service] ← downstream impact
7.  ALERT: order-service latency_p99 > 3s [order-service]
8.  ALERT: checkout-service SLO burn rate 14x [checkout-service] ← downstream impact
9.  ALERT: checkout-service error_rate > 10% [checkout-service]
10. ALERT: api-gateway error_rate > 3% [api-gateway] ← downstream impact
...
(50+ distinct alerts total, all from 1 root cause)

Without correlation: the engineer receives 50+ PagerDuty notifications in a flood. Time to understand the problem: about 20–40 minutes.

With correlation: the engineer receives one incident titled something like: "payment-service database connection exhaustion → cascading failure to order, checkout, api-gateway". Time to understand: < 2 minutes.

What Alert Correlation Produces¶

flowchart LR
    subgraph Input["Input: 50+ raw alerts"]
        A1["payment error_rate high"]
        A2["payment latency high"]
        A3["payment cpu x3 pods"]
        A4["order error_rate high"]
        A5["checkout SLO burn"]
        A6["..."]
    end

    subgraph Correlation["Alert Correlation Engine"]
        DEDUP["Deduplication<br/>Collapse A3 x3 pods to 1"]
        GROUP["Grouping<br/>By service topology"]
        TOPO["Topology Analysis<br/>Where did it start?"]
        CAUSAL["Causal Ordering<br/>Timestamp + dependency"]
        ENRICH["Enrichment<br/>Add context, runbooks"]
    end

    subgraph Output["Output: 1 incident group"]
        INC["Incident Group<br/>root: payment-service<br/>impacted: order, checkout, api-gateway<br/>type: db connection exhaustion<br/>severity: P1<br/>runbook: db-conn-pool<br/>traces + 23 ERROR logs"]
    end

    Input --> Correlation --> Output

    style Input fill:#fecaca,color:#1e293b
    style Correlation fill:#f3e8ff,color:#1e293b
    style Output fill:#dcfce7,color:#1e293b

2. Correlation Architecture¶

flowchart TD
    subgraph Sources["Alert Sources"]
        AM[Alertmanager\nwebhook → Kafka]
        AD[Anomaly Detector\nKafka: aiops-anomalies]
        CD[Custom Detectors\nKafka: aiops-anomalies]
    end

    subgraph Pipeline["Correlation Pipeline"]
        CONS[Kafka Consumer\naiops-anomalies]

        subgraph Window["Time Window Buffer (5 min)"]
            BUFF[In-memory Buffer\nRedis Sorted Set by timestamp]
        end

        subgraph Stages["Correlation Stages"]
            S1[Stage 1: Deduplication\nSame metric, same service, same time]
            S2[Stage 2: Grouping\nBy service + alert type]
            S3[Stage 3: Topology Correlation\nService dependency graph]
            S4[Stage 4: Causal Ordering\nTimestamp + dependency distance]
            S5[Stage 5: Enrichment\nRunbook + trace + log links]
        end
    end

    subgraph Output["Output"]
        PUB[Kafka Publisher\naiops-correlated-alerts]
        INCIDENT[Incident Store\nPostgres / DynamoDB]
        GRAFANA[Grafana Annotations]
        WEBHOOK[Webhook → PagerDuty / Slack]
    end

    Sources --> CONS --> BUFF --> Stages
    S1 --> S2 --> S3 --> S4 --> S5
    S5 --> PUB --> INCIDENT
    S5 --> GRAFANA
    S5 --> WEBHOOK

    style Sources fill:#dbeafe,color:#1e293b
    style Pipeline fill:#dcfce7,color:#1e293b
    style Output fill:#ffedd5,color:#1e293b

Data Flow Timing¶

Alert fires in Prometheus                     t=0s
Alertmanager webhook sends                    t=15s (evaluation interval)
Kafka receives the alert                      t=16s
Correlation window opens                      t=16s
Correlation window closes                     t=5 minutes (configurable)
Deduplication + grouping complete             t=5 minutes + 200ms
Topology correlation complete                 t=5 minutes + 1s
Causal ordering complete                      t=5 minutes + 1.5s
Enrichment (Loki/Tempo queries) complete      t=5 minutes + 5s
Incident published                            t=5 minutes + 6s
PagerDuty notification sent                   t=5 minutes + 7s

Total: 5–6 minutes from first alert fire to one structured unified incident

3. Stage 1 — Deduplication¶

Deduplication removes exact or near-exact duplicate alerts that fire repeatedly. It is the cheapest stage and should run before topology or semantic work — every duplicate you keep multiplies cost and cognitive load downstream.

Problem / idea¶


Problem	Alertmanager re-evaluates every 15–30s; multi-pod and dual detectors (Prometheus + anomaly ML) produce many events for one fault. Without dedup, correlation sees 50 near-clones and never forms a clean incident.
Idea	Fingerprint each alert on stable identity (alertname + service + namespace + severity), ignore volatile labels (`pod`, `instance`), and keep the first event in a TTL window while counting later occurrences.

Inputs from the AIOps data plane¶

Input	Source	Role
Normalized alert / anomaly events	Kafka `aiops-anomalies`, Alertmanager webhook	Raw stream to collapse
Canonical labels (`service`, `namespace`)	06 — Data Plane enrich	Stable fingerprint fields
Pod / instance labels	K8s / Prometheus	Stripped from key; used only for `affected_pods[]`
Dedup window (TTL)	Config (typically 60–300s)	How long a fingerprint is “the same alert”

How it works (steps)¶

1. Build fingerprint = hash(alertname, service, namespace, severity)  — drop pod/instance
2. Lookup Redis/in-memory key for fingerprint
3. If miss → store first_seen + occurrence_count=1 + affected_pods; emit as new
4. If hit within TTL → occurrence_count++; merge pod into affected_pods; suppress emit
5. On TTL expiry → next matching event opens a new “first” (or attach to open incident in late-join)

Output / what on-call sees¶

Field	Example	On-call meaning
`dedup_key`	`dedup:a3f2…`	Stable identity of the symptom
`occurrence_count`	`12`	How noisy this signal was
`affected_pods`	`[pod-a, pod-b, pod-c]`	Spread of the fault
`first_seen` / `last_seen`	ISO timestamps	Duration without flooding pages

On-call does not get 12 pages for one HighCPU — they get one row with pod_count=3 later folded into the incident card.

Pros / cons + when¶

Pros	Cons
O(1) per event; trivial to operate	Over-aggressive fingerprint can hide distinct failures (wrong label strip)
Immediate noise reduction before topology	Under-dedup if `service` label missing/renamed
Preserves multiplicity as metadata	Does not understand cascades — that is Stages 3–4

Use when	Do not use alone when
Any production Alertmanager / multi-replica path	You need causal root (need topology + ordering)
Dual detector stacks (rules + ML)	Shared-infra multi-service storms (need topology merge, not just dedup)

Types of Duplicates¶

Type 1: Re-fire (same alert, same labels, every evaluation cycle)
  alert: ServiceHighErrorRate{service="payment"} fires at t=0, t=15s, t=30s...
  → Keep only the first, silence later ones until the issue is fixed

Type 2: Pod-level duplicates (same fault on many parallel pods)
  alert: HighCPU{pod="payment-svc-abc"} + HighCPU{pod="payment-svc-def"} + ...
  → Merge into: HighCPU{service="payment-svc", pod_count=3}

Type 3: Alert + Anomaly duplicates
  Prometheus alert: error_rate > 5%
  Anomaly detector: same metric anomaly score = 0.9
  → Collapse into one event with combined context

Deduplication Implementation¶

See the code below — click to expand (read concepts first)

import hashlib
import json
import time
from typing import Optional
import redis

class AlertDeduplicator:
    def __init__(
        self,
        redis_client: redis.Redis,
        dedup_window_seconds: int = 300,    # 5-minute dedup window
        pod_collapse_labels: list = None,
    ):
        self.redis = redis_client
        self.window = dedup_window_seconds
        self.pod_labels = pod_collapse_labels or ["pod", "instance", "pod_name"]

    def _make_dedup_key(self, alert: dict) -> str:
        """
        Create alert fingerprint, ignoring pod-specific details.
        Two alerts with the same fingerprint are considered duplicates.
        """
        # Strip pod-level labels to collapse pod duplicates
        labels = {
            k: v for k, v in alert.get("labels", {}).items()
            if k not in self.pod_labels
        }

        fingerprint_data = {
            "alertname": alert.get("alertname") or alert.get("metric_name"),
            "service": labels.get("service") or labels.get("job"),
            "namespace": labels.get("namespace"),
            "severity": labels.get("severity"),
        }

        fingerprint_json = json.dumps(fingerprint_data, sort_keys=True)
        return f"dedup:{hashlib.md5(fingerprint_json.encode()).hexdigest()}"

    def is_duplicate(self, alert: dict) -> tuple[bool, Optional[dict]]:
        """
        Returns (is_duplicate, original_alert_if_exists)
        """
        key = self._make_dedup_key(alert)

        existing = self.redis.get(key)

        if existing:
            original = json.loads(existing)
            # Update failed pod count if this is a pod-level duplicate
            if self._is_pod_duplicate(alert, original):
                self._increment_pod_count(key, original)
            return True, original

        # First occurrence — store it
        alert_with_meta = {
            **alert,
            "first_seen": time.time(),
            "occurrence_count": 1,
            "affected_pods": self._extract_pod_labels(alert),
        }
        self.redis.setex(key, self.window, json.dumps(alert_with_meta))
        return False, None

    def _is_pod_duplicate(self, alert: dict, original: dict) -> bool:
        """Check whether this alert is from a different pod of the same service."""
        for pod_label in self.pod_labels:
            if (pod_label in alert.get("labels", {}) and
                alert["labels"][pod_label] != original.get("labels", {}).get(pod_label)):
                return True
        return False

    def _increment_pod_count(self, key: str, original: dict):
        original["occurrence_count"] = original.get("occurrence_count", 1) + 1
        self.redis.setex(key, self.window, json.dumps(original))

    def _extract_pod_labels(self, alert: dict) -> list:
        return [
            alert["labels"][label]
            for label in self.pod_labels
            if label in alert.get("labels", {})
        ]

4. Stage 2 — Grouping¶

After deduplication, group remaining alerts by shared attributes. Grouping is the bridge from “unique symptoms” to “candidate incident bags” that topology will later merge or split.

Problem / idea¶


Problem	After dedup you still have many different alertnames on the same service (error_rate, latency, CPU, SLO burn). Treating each as a separate incident re-creates the storm at service granularity.
Idea	Bucket alerts that share a primary key (usually `service`, then namespace / time for orphans) so one service fault becomes one group; leave cross-service linkage to Stage 3.

Inputs from the AIOps data plane¶

Input	Source	Role
Deduped events	Stage 1	Leaner stream
Service / job / namespace labels	Data plane canonical model	Group key
Time window buffer	Redis sorted set / in-mem (5m default)	Who is “concurrent”
Severity labels	Alertmanager	Group severity = max of members

How it works (steps)¶

1. Prefer group_key = labels.service (fallback: job → "unknown")
2. Place each alert into AlertGroup[service]; track alert_types[], max severity
3. Orphans without service → temporary TIME_WINDOW group
4. Do NOT yet merge different services (that needs topology score)
5. Emit list of AlertGroup for Stage 3

Output / what on-call sees¶

Not yet a full incident card — intermediate:

group_id: svc-payment-…
services_affected: [payment-service]
alert_types: [HighErrorRate, HighLatency, HighCPU]
severity: critical
alerts: […3–15 deduped members…]

Pros / cons + when¶

Pros	Cons
Explainable, deterministic	Service-only groups under-merge true cascades
Fast; good partial incident early	Missing `service` label → junk “unknown” buckets
Natural unit for suppression while open	Wrong service rename breaks grouping until data plane fixes

Use when	Do not stop here when
Always as Stage 2	Cascade spans checkout→payment→db (need Stage 3)
Single-service noise storms	Independent multi-failures that only share a time window

Grouping Dimensions¶

See the code below — click to expand (read concepts first)

from dataclasses import dataclass, field
from typing import List, Dict
from enum import Enum
import time

class GroupingStrategy(Enum):
    SERVICE = "service"           # All alerts from the same service
    NAMESPACE = "namespace"       # All alerts from the same k8s namespace
    TOPOLOGY = "topology"         # Alerts linked by service architecture topology
    ALERT_TYPE = "alert_type"     # Same fault type (error_rate, latency, etc.)
    TIME_WINDOW = "time_window"   # Alerts appearing in the same time window

@dataclass
class AlertGroup:
    group_id: str
    strategy: GroupingStrategy
    alerts: List[dict] = field(default_factory=list)
    created_at: float = field(default_factory=time.time)

    # Computed metadata
    services_affected: List[str] = field(default_factory=list)
    alert_types: List[str] = field(default_factory=list)
    severity: str = "unknown"

    def add_alert(self, alert: dict):
        self.alerts.append(alert)
        service = alert.get("labels", {}).get("service")
        if service and service not in self.services_affected:
            self.services_affected.append(service)
        alert_type = alert.get("alertname", "unknown")
        if alert_type not in self.alert_types:
            self.alert_types.append(alert_type)
        # Set severity to highest level
        severities = {"critical": 4, "warning": 3, "info": 2, "unknown": 1}
        if severities.get(alert.get("labels", {}).get("severity", ""), 0) > \
           severities.get(self.severity, 0):
            self.severity = alert["labels"].get("severity", "unknown")


class AlertGrouper:
    def __init__(self, time_window_seconds: int = 300):
        self.window = time_window_seconds
        self.groups: Dict[str, AlertGroup] = {}

    def group(self, alerts: List[dict]) -> List[AlertGroup]:
        """
        Multi-strategy grouping pipeline with priority.
        """
        # Strategy 1: Group by service (clearest and most common)
        service_groups = self._group_by_service(alerts)

        # Strategy 2: Group related service groups by architecture topology
        # (handled in Stage 3 — Topology Correlation)

        # Strategy 3: Handle alerts that do not belong to a specific service
        ungrouped = [a for a in alerts if not a.get("labels", {}).get("service")]
        misc_group = self._group_by_time_window(ungrouped)

        return list(service_groups.values()) + ([misc_group] if misc_group.alerts else [])

    def _group_by_service(self, alerts: List[dict]) -> Dict[str, AlertGroup]:
        groups = {}
        for alert in alerts:
            service = (
                alert.get("labels", {}).get("service") or
                alert.get("labels", {}).get("job") or
                "unknown"
            )
            if service not in groups:
                groups[service] = AlertGroup(
                    group_id=f"svc-{service}-{int(time.time())}",
                    strategy=GroupingStrategy.SERVICE,
                )
            groups[service].add_alert(alert)
        return groups

    def _group_by_time_window(self, alerts: List[dict]) -> AlertGroup:
        group = AlertGroup(
            group_id=f"time-{int(time.time())}",
            strategy=GroupingStrategy.TIME_WINDOW,
        )
        for alert in alerts:
            group.add_alert(alert)
        return group

5. Stage 3 — Topology-Aware Correlation¶

This is the most powerful correlation layer. It uses the service dependency graph to understand how alerts are causally linked — not just “same time,” but “same failure domain.”

Problem / idea¶


Problem	Time-window grouping alone over-merges independent outages and under-merges slow cascades that hop hop-by-hop across services.
Idea	If service A calls B and both alert within the correlation window, they likely share one incident; walk edges (and shared infra nodes: DB, Kafka, cache) to merge groups and estimate impact radius.

Warning

Topology correlation is only as good as graph freshness. A stale graph is worse than no graph (false merge / inverted root). See §19.1.

Inputs from the AIOps data plane¶

Input	Source	Role
Service groups	Stage 2	Nodes currently “red”
Dependency edges	OTel SpanMetrics, mesh, catalog	Caller → callee
Shared infra nodes	Data plane / CMDB	DB, queue, CDN as first-class nodes
Graph age / coverage metrics	Topology side plane (08)	Gate: use / degrade / disable topology
Call rates, error edges	Span metrics	Weight edges; prefer hot paths

How it works (steps)¶

1. Load graph; if age > max_age or coverage low → degrade (temporal/label only)
2. For each red service, expand upstream (callers) and downstream (callees) to max_depth
3. Score pair (group_i, group_j): topology_distance, shared_infra, edge weight
4. Merge if score ≥ threshold AND no multi-failure veto (see §19.3)
5. Gray zone → LINK (related incidents), not hard MERGE
6. Compute impact_radius = ancestors of hypothesized root

flowchart LR
    subgraph Red["Red services in window"]
        GW[api-gateway]
        ORD[order]
        PAY[payment]
    end
    subgraph Graph["Fresh dependency graph"]
        GW2[api-gateway] --> ORD2[order]
        ORD2 --> PAY2[payment]
        PAY2 --> DB[(payment-db)]
    end
    Red --> Merge[Merge score ≥ 0.6]
    Graph --> Merge
    Merge --> Inc[One incident · impact radius]

    style Red fill:#fecaca,color:#1e293b
    style Graph fill:#dbeafe,color:#1e293b
    style Merge fill:#dcfce7,color:#1e293b
    style Inc fill:#ffedd5,color:#1e293b

Output / what on-call sees¶

Field	Meaning
`merged_services[]`	Services folded into one incident
`topology_paths[]`	Why they were linked (edge list)
`impact_radius`	Who will hurt if root stays broken
`topology_confidence` / `graph_age_s`	Trust signal on the card
`decision`	`merge` \| `link` \| `split_candidate`

Pros / cons + when¶

Pros	Cons
Captures real cascades; best ROI after dedup	Requires maintained graph + infra nodes
Supports correct RCA direction later	Stale/inverted edges poison root selection
Enables impact-aware severity	Sparse graphs under-merge new services

Use when	Do not use when
Microservices with tracing or mesh	Graph age high / coverage low (fall back temporal)
Shared DB/Kafka fan-out storms	You only have hostnames and no service map

Service Dependency Graph Sources¶

graph TD
    subgraph Sources["Dependency Graph Sources"]
        OTEL[OpenTelemetry Traces\nSpan → parent service calls]
        ISTIO[Istio Service Mesh\nTraffic topology]
        KUBE[Kubernetes Services\nService → Endpoints]
        MANUAL[Manual Configuration\nCMDB / Backstage catalog]
    end

    subgraph Graph["Service Graph (Redis Graph / NetworkX)"]
        A[api-gateway] -->|calls| B[order-service]
        B -->|calls| C[payment-service]
        B -->|calls| D[inventory-service]
        C -->|calls| E[payment-db]
        D -->|calls| F[inventory-db]
    end

    Sources --> Graph

    style Sources fill:#dbeafe,color:#1e293b
    style Graph fill:#dcfce7,color:#1e293b

Building the Dependency Graph from Traces¶

See the code below — click to expand (read concepts first)

import networkx as nx
from collections import defaultdict
import json

class ServiceDependencyGraph:
    def __init__(self):
        self.graph = nx.DiGraph()
        self.call_counts = defaultdict(lambda: defaultdict(int))
        self.error_rates = defaultdict(lambda: defaultdict(float))

    def update_from_span_metrics(self, span_metrics: list):
        """
        Update the dependency graph from SpanMetrics (produced by OTel Collector).
        SpanMetrics provide service-to-service call information.
        """
        for metric in span_metrics:
            caller = metric.get("client_service")
            callee = metric.get("server_service")

            if caller and callee and caller != callee:
                self.graph.add_edge(
                    caller, callee,
                    weight=metric.get("call_rate", 0),
                    error_rate=metric.get("error_rate", 0),
                    latency_p99=metric.get("latency_p99", 0),
                )
                self.call_counts[caller][callee] += 1

    def find_upstream_services(self, service: str, max_depth: int = 3) -> list:
        """
        Find upstream services that call the current service.
        These may be showing cascading errors.
        """
        upstream = []
        for depth in range(1, max_depth + 1):
            for path in nx.all_simple_paths(
                self.graph, source=None, target=service, cutoff=depth
            ):
                upstream.extend(path[:-1])  # Exclude the target service itself
        return list(set(upstream))

    def find_downstream_services(self, service: str, max_depth: int = 3) -> list:
        """
        Find downstream services called by the current service (dependencies).
        These may be the root cause of the current service's failures.
        """
        if service not in self.graph:
            return []

        downstream = []
        for node in nx.descendants(self.graph, service):
            try:
                path_length = nx.shortest_path_length(self.graph, service, node)
                if path_length <= max_depth:
                    downstream.append({"service": node, "distance": path_length})
            except nx.NetworkXNoPath:
                pass

        return sorted(downstream, key=lambda x: x["distance"])

    def get_impact_radius(self, root_service: str) -> dict:
        """
        Compute the impact radius of a failing service:
        which other services will be affected?
        """
        directly_dependent = list(self.graph.predecessors(root_service))  # Direct callers
        all_dependent = list(nx.ancestors(self.graph, root_service))       # All related callers

        return {
            "root_service": root_service,
            "directly_dependent": directly_dependent,
            "all_dependent": all_dependent,
            "impact_score": len(all_dependent) / max(1, len(self.graph.nodes)),
        }

    def correlate_alerts_by_topology(
        self,
        alert_groups: list,
        max_correlation_distance: int = 3,
    ) -> list:
        """
        Merge alert groups for services linked by topology.
        If payment-service is failing AND order-service is failing,
        and order-service calls payment-service → merge into one incident.
        """
        correlated_groups = []
        processed = set()

        for group in alert_groups:
            if group.group_id in processed:
                continue

            related_groups = [group]
            services = set(group.services_affected)

            for other_group in alert_groups:
                if other_group.group_id == group.group_id:
                    continue
                if other_group.group_id in processed:
                    continue

                # Check topology relationship between this group's services
                # and the other group's services
                for svc_a in services:
                    for svc_b in other_group.services_affected:
                        try:
                            distance = nx.shortest_path_length(
                                self.graph, svc_a, svc_b
                            )
                            if distance <= max_correlation_distance:
                                related_groups.append(other_group)
                                services.update(other_group.services_affected)
                                processed.add(other_group.group_id)
                                break
                        except (nx.NetworkXNoPath, nx.NodeNotFound):
                            pass

            processed.add(group.group_id)
            correlated_groups.append(related_groups)

        return correlated_groups

6. Stage 4 — Causal Ordering¶

From a group of correlated alerts, determine which service is the root cause and which services are cascading symptoms. Correlation merges; causal ordering ranks roles so on-call does not restart the leaf gateway first.

Problem / idea¶


Problem	Inside one incident, 10 services are red. Without order, humans fix symptoms (scale gateway) while the DB pool stays exhausted.
Idea	Combine earliest symptom time with dependency depth: among near-simultaneous alerts, prefer the depended-on service (deeper callee / shared dependency) as root candidate; mark callers as symptoms.

Note

This is still a hypothesis for RCA, not proof of causation. Chapter 11 adds change confounders, evidence quality, and multi-root. Correlation ≠ causation remains true.

Inputs from the AIOps data plane¶

Input	Source	Role
Merged incident group	Stage 3	Services + first_alert times
Dependency graph	Topology plane	Distance and direction
Time tolerance (e.g. 120s)	Config	“Simultaneous” band (clock skew + detect lag)
Optional change events	Deploy / config stream	Soft prior (not full RCA yet)

How it works (steps)¶

1. Map service → first_alert_timestamp
2. earliest = min timestamp; simultaneous = within ±tolerance of earliest
3. Score simultaneous services by “how many others depend on me” / depth
4. root_hypothesis = highest topology score among simultaneous (not always earliest leaf)
5. Rank all services by graph distance from root → causal_chain
6. If graph stale → skip topology preference; mark confidence degraded

Output / what on-call sees¶

root_cause: payment-service
root_cause_candidates: [payment-service, payment-db]
causal_chain:
  - payment-service  role=root_cause   rank=0
  - order-service    role=symptom      rank=1
  - api-gateway      role=symptom      rank=2
evidence:
  temporal: payment alerted first at …
  topological: 4 services depend on payment

Incident title becomes actionable: payment-service … → cascade to order, gateway instead of many alerts.

Pros / cons + when¶

Pros	Cons
Cheap ordering; big UX win	Clock skew / delayed metrics invert time
Aligns with human mental model of cascades	Shared AZ failure fools pure service-graph order
Feeds RCA and remediation allowlists	Single-root bias — multi-root needs Ch10

Use when	Do not trust blindly when
Clear caller→callee mesh	Graph direction unknown or stale
Classic cascade patterns	Dual independent failures (use split/link)

Algorithm: Topological + Temporal Analysis¶

See the code below — click to expand (read concepts first)

from datetime import datetime
from typing import List, Tuple
import networkx as nx

def determine_causal_order(
    correlated_alerts: List[dict],
    dependency_graph: ServiceDependencyGraph,
    time_tolerance_seconds: int = 120,  # Alerts within 2 minutes treated as "simultaneous"
) -> dict:
    """
    Determine causal order from two signals:
    1. Topology position (downstream services fail AFTER upstream)
    2. Temporal order (earliest alert often reflects root cause)

    Returns services ranked from root cause to symptoms.
    """

    # Map service → first alert timestamp
    service_first_alert = {}
    for alert in correlated_alerts:
        service = alert.get("labels", {}).get("service", "unknown")
        alert_time = alert.get("starts_at") or alert.get("timestamp")

        if isinstance(alert_time, str):
            alert_time = datetime.fromisoformat(alert_time.replace("Z", "+00:00"))

        if service not in service_first_alert or alert_time < service_first_alert[service]:
            service_first_alert[service] = alert_time

    if not service_first_alert:
        return {"root_cause_candidates": [], "evidence": "no_service_data"}

    # Find service with EARLIEST alert (temporal evidence)
    earliest_service = min(service_first_alert, key=service_first_alert.get)
    earliest_time = service_first_alert[earliest_service]

    # Services alerted within time tolerance of the earliest
    # (nearly simultaneous — any could be the cause)
    simultaneous = [
        svc for svc, ts in service_first_alert.items()
        if abs((ts - earliest_time).total_seconds()) <= time_tolerance_seconds
    ]

    # Among simultaneous services, prefer the most DOWNSTREAM on topology
    # (deepest in dependency graph = the called service, not the caller)
    def get_topology_score(service: str) -> int:
        """
        Score = number of other services called by this service
        Higher score = more likely root (many callers depend on it)
        """
        if service not in dependency_graph.graph:
            return 0
        return len(list(dependency_graph.graph.successors(service)))

    root_cause_candidates = sorted(
        simultaneous,
        key=get_topology_score,
        reverse=True,
    )

    # Rank all services by causal distance from the root
    root = root_cause_candidates[0] if root_cause_candidates else earliest_service

    service_ranking = []
    for service, ts in service_first_alert.items():
        try:
            distance = nx.shortest_path_length(
                dependency_graph.graph, root, service
            )
        except (nx.NetworkXNoPath, nx.NodeNotFound):
            distance = 999  # No path = likely independent failure

        service_ranking.append({
            "service": service,
            "causal_rank": distance,
            "first_alert_time": ts.isoformat(),
            "role": "root_cause" if service == root else "symptom",
        })

    service_ranking.sort(key=lambda x: x["causal_rank"])

    return {
        "root_cause_candidates": root_cause_candidates,
        "root_cause": root,
        "causal_chain": service_ranking,
        "evidence": {
            "temporal": f"{earliest_service} alerted first at {earliest_time}",
            "topological": f"{root} is depended on by {len(list(dependency_graph.graph.predecessors(root)))} services",
        },
    }

7. Stage 5 — Alert Enrichment¶

Enrichment adds context that makes the grouped incident immediately actionable. Without it, correlation only reduces count; with it, the first page answers “what / where / recent change / which runbook.”

Problem / idea¶


Problem	A clean group with root=`payment-service` still forces on-call to open 5 tabs (Prom, Loki, Tempo, deploys, wiki). That burns the MTTR budget correlation just saved.
Idea	In parallel, attach evidence links + snippets (errors, traces, metric context, recent deploys, runbook) so the incident card is a workbench, not a title.

Inputs from the AIOps data plane¶

Input	Source	Role
Incident skeleton	Stages 1–4	Root, services, window
Metrics snapshot	Prometheus	Error rate, saturation, burn
Error logs	Loki	Template / top messages
Traces	Tempo	Exemplar trace ids, slow spans
Changes	CI/CD / 08 Topology & Change	Deploy within impact window
Runbook index	Wiki / Git	Deep link by failure_mode

How it works (steps)¶

1. Bound time range (e.g. now-30m → now) around incident start
2. Fan-out async queries: logs, traces, metrics, deploys, runbook search
3. Soft-fail each source (partial enrichment > empty card)
4. Cap payload size (top N errors, 1–3 trace ids) for page UX
5. Publish enriched incident → Kafka aiops-correlated-alerts + Pager/Slack

Output / what on-call sees¶

title: payment-service db pool → cascade (9 services)
root: payment-service · confidence 0.84 · graph_age 4m
metrics: error_rate 12% · pool 20/20 · burn 14x
logs: 847× "connection pool exhausted" (Loki link)
traces: 4bf92f35… (Tempo)
changes: deploy payment@2.14.3 (8m ago)
runbook: /runbooks/db-conn-pool
suppressed_alerts: 63

Pros / cons + when¶

Pros	Cons
Largest jump in time-to-understanding	Query fan-out can add 1–5s; dependency on observability stack
Partial results still useful	Over-enrichment floods the card (need caps)
Feeds LLM agent / RCA with cites	Stale runbooks mislead (content ownership)

Use when	Do not block page when
Always for P1/P2 pageable incidents	Loki/Tempo down — ship skeleton + banner
Before LLM investigation	Enrichment SLA would exceed page SLO — defer deep attach

See the code below — click to expand (read concepts first)

import aiohttp
import asyncio
import time
from typing import Optional

class AlertEnricher:
    def __init__(
        self,
        prometheus_url: str,
        loki_url: str,
        tempo_url: str,
        runbook_index_url: str,
    ):
        self.prometheus_url = prometheus_url
        self.loki_url = loki_url
        self.tempo_url = tempo_url
        self.runbook_url = runbook_index_url

    async def enrich(
        self,
        incident: dict,
        time_range_minutes: int = 30,
    ) -> dict:
        """
        Run enrichment queries in parallel from multiple sources.
        """
        root_service = incident.get("root_cause", "unknown")

        # Run all context queries concurrently
        enrichment_tasks = await asyncio.gather(
            self._get_recent_errors(root_service, time_range_minutes),
            self._get_related_traces(root_service, time_range_minutes),
            self._get_metric_context(root_service, time_range_minutes),
            self._get_runbook(incident),
            self._get_recent_deployments(root_service),
            return_exceptions=True,
        )

        (error_logs, traces, metric_context, runbook, deployments) = enrichment_tasks

        # Safe extraction (skip failed tasks)
        incident["enrichment"] = {
            "error_log_count": len(error_logs) if isinstance(error_logs, list) else 0,
            "sample_errors": error_logs[:5] if isinstance(error_logs, list) else [],
            "related_trace_ids": traces if isinstance(traces, list) else [],
            "metric_context": metric_context if isinstance(metric_context, dict) else {},
            "runbook_url": runbook if isinstance(runbook, str) else None,
            "recent_deployments": deployments if isinstance(deployments, list) else [],
        }

        return incident

    async def _get_recent_errors(self, service: str, minutes: int) -> list:
        """Query Loki for recent ERROR logs from the service."""
        query = f'{{service="{service}"}} |= "ERROR" | json | line_format "{{.message}}"'

        async with aiohttp.ClientSession() as session:
            params = {
                "query": query,
                "limit": 20,
                "start": f"{int((time.time() - minutes * 60) * 1e9)}",
                "end": f"{int(time.time() * 1e9)}",
            }
            async with session.get(
                f"{self.loki_url}/loki/api/v1/query_range",
                params=params,
                timeout=aiohttp.ClientTimeout(total=5),
            ) as resp:
                if resp.status == 200:
                    data = await resp.json()
                    return [
                        entry[1] for stream in data.get("data", {}).get("result", [])
                        for entry in stream.get("values", [])
                    ]
        return []

    async def _get_related_traces(self, service: str, minutes: int) -> list:
        """Query Tempo for recent error traces of the service."""
        async with aiohttp.ClientSession() as session:
            params = {
                "q": f'{{resource.service.name="{service}"}} && status=error',
                "limit": 5,
                "start": f"{int(time.time() - minutes * 60)}",
                "end": f"{int(time.time())}",
            }
            async with session.get(
                f"{self.tempo_url}/api/search",
                params=params,
                timeout=aiohttp.ClientTimeout(total=5),
            ) as resp:
                if resp.status == 200:
                    data = await resp.json()
                    return [t["traceID"] for t in data.get("traces", [])]
        return []

    async def _get_runbook(self, incident: dict) -> Optional[str]:
        """Search for a runbook matching this incident type."""
        alert_types = incident.get("alert_types", [])
        root_service = incident.get("root_cause", "")

        # Query internal runbook store (RAG system — details in Ch10)
        async with aiohttp.ClientSession() as session:
            payload = {
                "query": f"{root_service} {' '.join(alert_types)}",
                "top_k": 1,
            }
            async with session.post(
                f"{self.runbook_url}/api/v1/search",
                json=payload,
                timeout=aiohttp.ClientTimeout(total=3),
            ) as resp:
                if resp.status == 200:
                    data = await resp.json()
                    return data.get("results", [{}])[0].get("url")
        return None

    async def _get_recent_deployments(self, service: str) -> list:
        """Check whether there were recent deployments."""
        # From Kubernetes events or CI/CD deployment system
        return []

    async def _get_metric_context(self, service: str, minutes: int) -> dict:
        """Query basic service metrics from Prometheus."""
        return {}

8. Correlation Algorithms Deep Dive¶

Beyond topology relationships, additional algorithms improve correlation accuracy.

Algorithm 1: Temporal Sliding Window¶

See the code below — click to expand (read concepts first)

from collections import deque
import time

class TemporalWindowCorrelator:
    """
    Correlate alerts appearing in the same sliding time window.
    Based on the fact that fast cascading failures usually produce
    alerts only 1–5 minutes apart.
    """
    def __init__(self, window_seconds: int = 300):
        self.window = window_seconds
        # Timestamp-sorted buffer: deque of (timestamp, alert)
        self.buffer: deque = deque()

    def add_alert(self, alert: dict, timestamp: float = None) -> list:
        """
        Add a new alert to the window. Returns current alerts in the window
        (candidates for correlation).
        """
        ts = timestamp or time.time()
        self.buffer.append((ts, alert))

        # Drop expired alerts from the window
        cutoff = ts - self.window
        while self.buffer and self.buffer[0][0] < cutoff:
            self.buffer.popleft()

        return [a for _, a in self.buffer]

Algorithm 2: Label-Based Fingerprinting¶

Two alerts are considered correlated if they have high label overlap:

See the code below — click to expand (read concepts first)

def label_similarity_score(alert_a: dict, alert_b: dict) -> float:
    """
    Jaccard similarity between two alert label sets.
    Higher = more similar = higher correlation likelihood.
    """
    labels_a = set(f"{k}={v}" for k, v in alert_a.get("labels", {}).items()
                   if k not in ["pod", "instance", "alertname"])
    labels_b = set(f"{k}={v}" for k, v in alert_b.get("labels", {}).items()
                   if k not in ["pod", "instance", "alertname"])

    if not labels_a and not labels_b:
        return 0.0

    intersection = len(labels_a & labels_b)
    union = len(labels_a | labels_b)

    return intersection / union if union > 0 else 0.0

Algorithm 3: Mutual Information (Statistical Correlation)¶

For time-series anomaly scores, use mutual information to detect anomalous correlation:

See the code below — click to expand (read concepts first)

from sklearn.metrics import mutual_info_score
import numpy as np

def compute_mutual_information(
    anomaly_scores_a: np.ndarray,
    anomaly_scores_b: np.ndarray,
    bins: int = 10,
) -> float:
    """
    High mutual information → two metrics show similar patterns → may share a cause.
    """
    # Discretize continuous scores into bins
    a_bins = np.digitize(anomaly_scores_a, np.linspace(0, 1, bins))
    b_bins = np.digitize(anomaly_scores_b, np.linspace(0, 1, bins))

    return mutual_info_score(a_bins, b_bins)

9. Service Dependency Graph¶

Building from OpenTelemetry Service Graph Metrics¶

Tempo's metrics generator produces traces_service_graph_* metrics describing dependencies:

See the code below — click to expand (read concepts first)

# Service edges (caller → callee)
traces_service_graph_request_total{
  client="order-service",
  server="payment-service"
}

# Inter-service error rate
rate(traces_service_graph_request_failed_total{
  client="order-service",
  server="payment-service"
}[5m])
/
rate(traces_service_graph_request_total{
  client="order-service",
  server="payment-service"
}[5m])

Maintaining the Graph in Redis¶

See the code below — click to expand (read concepts first)

import redis
import json
import time

class ServiceGraphStore:
    """
    Store and maintain the service dependency graph in Redis for fast queries.
    Updated every 5 minutes from SpanMetrics/ServiceGraph metrics.
    """
    def __init__(self, redis_client: redis.Redis):
        self.redis = redis_client
        self.key_prefix = "service_graph:"
        self.ttl = 3600 * 24  # 24-hour storage TTL

    def update_edge(
        self,
        caller: str,
        callee: str,
        call_rate: float,
        error_rate: float,
        latency_p99_ms: float,
    ):
        edge_key = f"{self.key_prefix}edge:{caller}:{callee}"
        self.redis.setex(
            edge_key,
            self.ttl,
            json.dumps({
                "caller": caller,
                "callee": callee,
                "call_rate": call_rate,
                "error_rate": error_rate,
                "latency_p99_ms": latency_p99_ms,
                "updated_at": time.time(),
            }),
        )
        # Maintain adjacency lists
        self.redis.sadd(f"{self.key_prefix}callers:{callee}", caller)
        self.redis.sadd(f"{self.key_prefix}callees:{caller}", callee)
        self.redis.expire(f"{self.key_prefix}callers:{callee}", self.ttl)
        self.redis.expire(f"{self.key_prefix}callees:{caller}", self.ttl)

    def get_callers(self, service: str) -> list:
        """Which services call this service? (upstream services)"""
        return list(self.redis.smembers(f"{self.key_prefix}callers:{service}"))

    def get_callees(self, service: str) -> list:
        """Which services does this service call? (downstream dependencies)"""
        return list(self.redis.smembers(f"{self.key_prefix}callees:{service}"))

10. Temporal Correlation¶

Cross-Correlation for Time-Series Alignment¶

Cross-correlation measures the time shift between two anomaly series. Positive lag means service A's anomaly appears before service B's — evidence that A may cause B.

See the code below — click to expand (read concepts first)

import numpy as np

def cross_correlate_anomaly_series(
    scores_a: np.ndarray,  # Service A anomaly scores (last 10 minutes, 1-min resolution)
    scores_b: np.ndarray,  # Service B anomaly scores
    max_lag_steps: int = 10,  # Max lag ±10 minutes
) -> dict:
    """
    Compute cross-correlation to find causal lag between two anomaly series.
    Returns the lag steps where correlation is maximized.
    Positive lag: A appears before B → A likely causes B.
    """
    n = len(scores_a)
    correlations = []

    for lag in range(-max_lag_steps, max_lag_steps + 1):
        if lag >= 0:
            a_slice = scores_a[:n - lag] if lag < n else []
            b_slice = scores_b[lag:]
        else:
            a_slice = scores_a[-lag:]
            b_slice = scores_b[:n + lag] if -lag < n else []

        if len(a_slice) > 2 and len(b_slice) > 2:
            corr = np.corrcoef(a_slice, b_slice)[0, 1]
        else:
            corr = 0.0

        correlations.append({"lag": lag, "correlation": corr if not np.isnan(corr) else 0.0})

    best = max(correlations, key=lambda x: abs(x["correlation"]))

    return {
        "best_lag_steps": best["lag"],
        "best_correlation": best["correlation"],
        "interpretation": (
            f"Service A anomaly appears about {best['lag']} minutes before Service B"
            if best["lag"] > 0 else
            f"Service B anomaly appears about {-best['lag']} minutes before Service A"
            if best["lag"] < 0 else
            "Services appear affected simultaneously"
        ),
        "causal_evidence_strength": abs(best["correlation"]),
    }

11. Semantic Similarity Correlation¶

For raw alert names and descriptions, use embedding similarity to find alerts with related semantic content (even when labels do not match):

See the code below — click to expand (read concepts first)

from sentence_transformers import SentenceTransformer
import numpy as np
from sklearn.metrics.pairwise import cosine_similarity

class SemanticAlertCorrelator:
    def __init__(self, model_name: str = "all-MiniLM-L6-v2"):
        # Load compact embedding model (~80MB, runs well on CPU)
        self.model = SentenceTransformer(model_name)

    def correlate(
        self,
        alerts: list,
        similarity_threshold: float = 0.75,
    ) -> list:
        """
        Find alerts with high semantic similarity (different wording for the same problem).
        """
        if len(alerts) < 2:
            return [[a] for a in alerts]

        # Compose description text for embedding
        descriptions = [
            f"{a.get('alertname', '')} {a.get('annotations', {}).get('summary', '')} "
            f"{a.get('labels', {}).get('service', '')}"
            for a in alerts
        ]

        embeddings = self.model.encode(descriptions, batch_size=32)
        sim_matrix = cosine_similarity(embeddings)

        # Cluster alerts by semantic similarity
        clusters = []
        used = set()

        for i, alert in enumerate(alerts):
            if i in used:
                continue
            cluster = [alert]
            used.add(i)

            for j in range(i + 1, len(alerts)):
                if j not in used and sim_matrix[i][j] >= similarity_threshold:
                    cluster.append(alerts[j])
                    used.add(j)

            clusters.append(cluster)

        return clusters

12. Incident Formation Rules¶

After correlation computation, apply rules to assign severity and route incident handling:

See the code below — click to expand (read concepts first)

from dataclasses import dataclass
from typing import List, Callable

@dataclass
class IncidentFormationRule:
    name: str
    condition: Callable[[dict], bool]
    severity: str
    title_template: str
    auto_remediate: bool = False

FORMATION_RULES = [
    IncidentFormationRule(
        name="database_exhaustion",
        condition=lambda inc: (
            any("db" in svc or "database" in svc for svc in inc.get("services_affected", [])) and
            inc.get("alert_types_present", {}).get("high_connections", False)
        ),
        severity="critical",
        title_template="Database connection pool exhaustion at {root_cause} → cascading impact on {impacted_count} services",
        auto_remediate=True,
    ),
    IncidentFormationRule(
        name="deployment_regression",
        condition=lambda inc: (
            inc.get("enrichment", {}).get("recent_deployments") and
            inc.get("root_cause") in [d.get("service") for d in inc.get("enrichment", {}).get("recent_deployments", [])]
        ),
        severity="critical",
        title_template="Post-deploy regression at {root_cause}: error rate spike after version {deploy_version}",
        auto_remediate=True,  # Allow automatic rollback trigger
    ),
    IncidentFormationRule(
        name="slo_burning_fast",
        condition=lambda inc: any(
            a.get("alertname", "").startswith("SLO") for a in inc.get("all_alerts", [])
        ),
        severity="critical",
        title_template="Critical SLO burn rate: {root_cause} consuming error budget at {burn_rate}x",
        auto_remediate=False,
    ),
    IncidentFormationRule(
        name="cascading_failure",
        condition=lambda inc: len(inc.get("services_affected", [])) > 3,
        severity="critical",
        title_template="Cascading failure: impacting {impacted_count} services, root at {root_cause}",
        auto_remediate=False,
    ),
    IncidentFormationRule(
        name="single_service_degraded",
        condition=lambda inc: len(inc.get("services_affected", [])) == 1,
        severity="warning",
        title_template="Service {root_cause} degraded: {primary_alert_type}",
        auto_remediate=True,
    ),
]

def apply_formation_rules(incident: dict) -> dict:
    """Apply the first matching rule to the incident."""
    for rule in FORMATION_RULES:
        if rule.condition(incident):
            incident["severity"] = rule.severity
            incident["title"] = rule.title_template.format(
                root_cause=incident.get("root_cause", "unknown"),
                impacted_count=len(incident.get("services_affected", [])),
                primary_alert_type=incident.get("alert_types", ["unknown"])[0],
                burn_rate=incident.get("burn_rate", "unknown"),
                deploy_version=incident.get("enrichment", {}).get(
                    "recent_deployments", [{}]
                )[0].get("version", "unknown"),
            )
            incident["matched_rule"] = rule.name
            incident["auto_remediate"] = rule.auto_remediate
            break

    return incident

13. Production Configuration¶

Kafka Consumer Configuration¶

See the code below — click to expand (read concepts first)

# correlation-engine deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: alert-correlation-engine
  namespace: aiops
spec:
  replicas: 2
  template:
    spec:
      containers:
        - name: correlation-engine
          image: aiops/correlation-engine:1.0.0
          env:
            - name: KAFKA_BROKERS
              value: "kafka-1.kafka.svc:9092,kafka-2.kafka.svc:9092"
            - name: INPUT_TOPIC
              value: "aiops-anomalies"
            - name: OUTPUT_TOPIC
              value: "aiops-correlated-alerts"
            - name: CONSUMER_GROUP
              value: "correlation-engine-group"
            - name: CORRELATION_WINDOW_SECONDS
              value: "300"
            - name: REDIS_URL
              valueFrom:
                secretKeyRef:
                  name: correlation-secrets
                  key: redis-url
          resources:
            requests:
              cpu: "1"
              memory: "2Gi"
            limits:
              cpu: "2"
              memory: "4Gi"

Correlation Engine Configuration¶

See the code below — click to expand (read concepts first)

# config.yaml
correlation:
  window_seconds: 300              # 5-minute correlation window
  dedup_window_seconds: 300        # 5-minute dedup window
  max_group_size: 100              # Max alerts in one group
  topology_max_depth: 3            # Max hops on dependency graph for correlation

  weights:
    topology: 0.40                 # Topology is the strongest signal
    temporal: 0.35                 # Temporal proximity
    label_similarity: 0.25         # Label overlap ratio

  thresholds:
    min_correlation_score: 0.60    # Minimum score to merge groups
    min_label_similarity: 0.40     # Minimum Jaccard for label correlation
    max_causal_lag_minutes: 10     # Max time lag between cause and effect

enrichment:
  enabled: true
  timeout_seconds: 5
  loki_url: "http://loki-query-frontend.observability.svc:3100"
  tempo_url: "http://tempo-query-frontend.observability.svc:3200"
  prometheus_url: "http://prometheus.observability.svc:9090"

incident:
  min_alerts_for_incident: 2       # Need at least 2 alerts to form an incident
  auto_close_if_resolved_in: 300   # Auto-close if all alerts clear within 5 minutes

14. Common Mistakes¶

Common mistake	Symptom	Fix
Correlation window too short	Related alerts not grouped together	Increase window to about 5–10 minutes
No dependency graph configured	Grouping only by single service labels	Build dependency graph automatically from SpanMetrics
Dependency graph not refreshed	Architecture changes miss correlation	Refresh graph every 5–15 minutes
Dedup too aggressive	Multi-pod faults collapse and lose shared signal	Keep and display pod count in the merged alert
No causal ordering	Incident shows wrong root service	Apply ranking stacking temporal + topological
Single-pod correlation engine	SPOF for the whole incident path	Deploy ≥2 replicas in parallel
Alertmanager + Anomaly Detector not unified	Duplicate incidents for the same problem	Merge all alert sources onto one Kafka topic
No enrichment timeout	Enrichment stalls and delays incident creation	Run enrichment tasks in parallel with max 5s timeout

15. Monitoring the Correlation Engine¶

See the code below — click to expand (read concepts first)

# Processing throughput
rate(aiops_correlation_alerts_received_total[5m])
rate(aiops_correlation_incidents_created_total[5m])

# Deduplication effectiveness
rate(aiops_correlation_duplicates_suppressed_total[5m])
/
rate(aiops_correlation_alerts_received_total[5m])

# Correlation quality
aiops_correlation_alerts_per_incident            # Group size (best around 5–20)
aiops_correlation_time_to_first_incident_seconds # Time from alert fire to incident creation

# Consumer lag (pipeline health)
kafka_consumer_group_lag_sum{group="correlation-engine-group"}

Alerting Rules¶

See the code below — click to expand (read concepts first)

- alert: CorrelationEngineLagHigh
  expr: kafka_consumer_group_lag_sum{group="correlation-engine-group"} > 5000
  for: 5m
  labels:
    severity: critical

- alert: CorrelationEngineDown
  expr: up{job="correlation-engine"} == 0
  for: 2m
  labels:
    severity: critical

- alert: CorrelationEfficiencyLow
  expr: |
    rate(aiops_correlation_incidents_created_total[1h])
    /
    rate(aiops_correlation_alerts_received_total[1h]) > 0.5
  for: 15m
  labels:
    severity: warning
  annotations:
    summary: "Low correlation efficiency: >50% of alerts create separate incidents (expected: <20%)"

16. Scaling¶

The correlation engine is designed stateful (correlation windows live in Redis). Scaling options:

Vertical: Increase memory for larger correlation windows
Horizontal with partitioning: Route alerts for the same service to the same correlation engine instance (sticky partitioning by service label)

See the code below — click to expand (read concepts first)

apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: correlation-engine-hpa
spec:
  scaleTargetRef:
    kind: Deployment
    name: alert-correlation-engine
  minReplicas: 2
  maxReplicas: 8
  metrics:
    - type: External
      external:
        metric:
          name: kafka_consumer_group_lag_sum
          selector:
            matchLabels:
              group: correlation-engine-group
        target:
          type: Value
          value: "5000"

17. Security¶

All Kafka connections require SASL/SSL (details in Chapter 06)
Redis state encrypted at rest and in transit (ElastiCache TLS)
Enrichment API calls use internal mTLS
Incident store (Postgres/DynamoDB) encrypted with KMS
PagerDuty webhooks use HTTPS with signing secret authentication

18. Cost¶

Component	Monthly cost
Correlation Engine (2× m6i.large)	$240
Redis (ElastiCache r6g.large, HA pair)	$480
Incident Store (RDS Postgres db.t4g.medium)	$55
Total	~$775/month

19. Deep Thinking: Topology Stale, Time-Window, Cascade vs Multi-Failure, Storm UX¶

19.1 Topology stale graph — worse than no graph¶

Warning

A wrong graph is worse than no graph. Without topology you only under-merge (many separate incidents). A stale graph with bad edges will over-merge or invert root cause — on-call trusts one wrong story and loses 20–40 minutes.

Stale type	Symptom	Consequence	Mitigation
Dead edge (dependency removed)	Still merges A↔B	False merge of 2 independent incidents	Edge TTL; decay weight by last_seen_call
Missing new edge (new service)	Real cascade not merged	Alert storm still pages separately	Bootstrap from SpanMetrics every 5–15 minutes; fallback temporal+label
Inverted edge direction (client/server swapped)	Root = downstream	Wrong RCA/remediation direction	Validate with trace parent-child + server span
Missing shared dependency (DB/Kafka)	2 services fail together, not merged	On-call thinks 2 outages	Add infra nodes (db, queue, cache) to the graph
Multi-cluster blind	Cross-cluster cascade splits incidents	Higher MTTR	Cluster-aware graph + shared resource edges

See the code below — click to expand (read concepts first)

class TopologyHealthGuard:
    """
    Block correlation from using a graph that is too old or too sparse.
    """
    def __init__(self, max_age_seconds=900, min_edge_coverage=0.5):
        self.max_age_seconds = max_age_seconds
        self.min_edge_coverage = min_edge_coverage

    def can_use_topology(self, graph_meta: dict, active_services: set) -> dict:
        age = graph_meta["age_seconds"]
        covered = len(graph_meta["services_with_edges"] & active_services) / max(1, len(active_services))

        if age > self.max_age_seconds:
            return {
                "use_topology": False,
                "reason": "stale_graph",
                "fallback": ["temporal", "label_similarity", "semantic"],
                "degrade_confidence": 0.15,
            }
        if covered < self.min_edge_coverage:
            return {
                "use_topology": True,
                "reason": "sparse_graph",
                "topology_weight_cap": 0.20,  # lower topology weight
                "fallback": ["temporal"],
            }
        return {"use_topology": True, "topology_weight": 0.40}

Important

When stale_graph=true, disable topology-based causal ordering; only temporal clustering + show banner: "Topology outdated — correlation confidence reduced". Do not silently use a rotten graph.

Operational rule: refresh graph every 5–15 minutes; metric aiops_topology_graph_age_seconds; page platform if age > 30 minutes. Multi-region graph details: 16 — E-commerce & Banking.

19.2 Time-window tuning: too short vs too long¶

Window	Pros	Cons	When to use
60–120s	Early incident, less mixing	Miss slow cascades (DB pool drain 5–10 min)	Hard-down, probe fail
300s (5m)	Good balance for microservices	Still may miss batch/cron cascade	Default production
10–15m	Captures slow cascades	Mixes 2 independent incidents; slow page	Batch jobs, data pipelines
30m+	Offline analytics only	Useless for realtime on-call	Post-hoc correlation report

KEY IDEA

Window is not a single number. Use a two-phase window: fast path 90s to page early with a partial group; late-join for another 5–10 minutes to attach late alerts to the open incident — without creating a new incident.

See the code below — click to expand (read concepts first)

correlation_windows:
  fast_path:
    seconds: 90
    min_alerts: 2
    action: create_or_update_incident
  late_join:
    seconds: 600
    action: attach_to_open_incident_if_score_gt_0.7
  hard_split:
    # If 2 groups have no topology path and delta_t > 180s → keep split
    independent_gap_seconds: 180

Signs the window is wrong:

Too short: median alerts_per_incident < 3; engineers merge manually on PagerDuty
Too long: time_to_first_incident > 8 minutes; one incident contains two different root causes in the postmortem

19.3 Cascade vs independent multi-failures (correlated false merge)¶

This is correlation's most dangerous failure mode: merge two independent outages into one, so on-call only fixes half.

True timeline:
  t=0    payment-db connection storm  (region A)
  t=90s  CDN config push bad          (global)  ← independent

Topology/temporal engine sees:
  payment ↓, checkout ↓, edge latency ↑ close in time
  → merge into 1 incident "payment cascade"

Consequence:
  Team only rolls back payment pool; CDN stays broken 40 minutes

Signals that require SPLIT (do not merge):

No topology path ≤ max_depth between 2 root candidates
Different failure-mode class (db_conn vs dns vs cert vs deploy)
change_events point to 2 unrelated systems within ±15 minutes
Different geo blast radius (1 region vs global)
Low semantic title similarity + low label Jaccard even if temporally close

See the code below — click to expand (read concepts first)

def should_merge(group_a: dict, group_b: dict, graph, changes) -> dict:
    topo_dist = graph.distance(group_a["root"], group_b["root"])  # inf if none
    temporal_gap = abs(group_a["t0"] - group_b["t0"]).total_seconds()
    same_failure_class = group_a["failure_class"] == group_b["failure_class"]
    shared_change = changes.shared_root_cause(group_a, group_b)

    score = 0.0
    if topo_dist <= 3:
        score += 0.4 * (1 - topo_dist / 3)
    if temporal_gap < 120:
        score += 0.3
    elif temporal_gap < 300:
        score += 0.15
    if same_failure_class:
        score += 0.15
    if shared_change:
        score += 0.25

    # Hard veto: different region-scope + no shared infra + gap > 60s
    if group_a["scope"] != group_b["scope"] and not shared_change and temporal_gap > 60:
        return {"merge": False, "reason": "independent_multi_failure_veto", "score": score}

    return {"merge": score >= 0.60, "score": score, "reason": "score_threshold"}

Tip

Safe UX: when merge score is in the gray zone (0.55–0.70), create a linked incident (related) instead of hard-merge. On-call sees "may be related" but still has 2 timelines — better than one wrong timeline.

Multi-failure case studies: 17 — Famous Incidents.

19.4 Storm suppression UX for humans¶

Technical suppression (dedup, silence) is not enough — you need UX that helps the human brain in the first 30 seconds.

UX requirements during a storm:

Factor	Good	Bad
Title	`payment-db pool exhausted → 12 services (cascade)`	`Alertmanager: many firing`
Root vs symptom	Root marked ⭐; symptoms collapsed	40 alerts at the same level
Progress	`47 alerts suppressed into this incident`	Unknown how many are hidden
Action	1 button: Open runbook / Ack / Page secondary	15 scattered deep-links
Noise control	`Silence related 30m` scoped to incident_id	Global silence for whole cluster
Confidence	`Correlation confidence 0.82 (topology stale: no)`	No uncertainty shown
Split control	`Split into independent incident`	Cannot fix a false merge

## Incident INC-20481  ·  P1  ·  confidence 0.84
**Root (hypothesis):** payment-service → payment-db connection pool
**Impact:** checkout, order, api-gateway (9 services) · error budget burn 14x
**Suppressed:** 63 raw alerts · 11 pods · 3 clusters signals
**Topology:** fresh (age 4m) · path depth 2
**Changes (15m):** deploy payment-service@2.14.3 (8m ago)
**Runbook:** /runbooks/db-conn-pool
**Related (not merged):** CDN latency region-EU (score 0.41)

[Ack] [Page DB on-call] [Silence related 30m] [Mark false-merge / Split] [Open Grafana]

Warning

Anti-pattern storm UX: forward raw Alertmanager webhooks into Slack. A storm of 200 messages = zero signal. Every pageable path must go through a correlated incident card.

19.5 Problem-solving: when the correlation engine "creates" bad incidents¶

Problem	Detection metric	Short-term fix	Long-term fix
Over-merge	Postmortem split rate > 15%	Raise `min_correlation_score`; enable multi-failure veto	Improve failure_class + change correlation
Under-merge	alerts_per_incident < 3; manual merge	Widen late-join window; raise topology weight	Graph coverage, shared infra nodes
Wrong root	RCA inverted to downstream	Disable causal order when graph is stale	Trace-based edge direction
Flapping incidents	create/close thrash	Flap detector: 3 flaps/15m → sticky open	Close hysteresis 5–10m
Storm bypasses correlation	PagerDuty raw flood	Alertmanager routes only → Kafka; ban parallel fan-out	Single ingress path

Note

Check question: You receive one incident card with 80 suppressed alerts but root is api-gateway. Do you trust or doubt? Which signals decide a split?

Run periodic storm drills on game day: 14 — Production. Big Tech patterns: 15 — Big Tech AIOps.

19.6 Decision log: merge / link / split¶

On-call and postmortem need a shared language:

Decision	Definition	When to use	Record on incident
MERGE	One timeline, one commander	score ≥ 0.70 + no veto	`correlation_decision=merge`
LINK	Two timelines, related	0.55–0.70 or suspected multi-failure	`related_incident_ids[]`
SPLIT	Separate a wrongly merged group	Post-ack evidence conflicts	`split_from=INC-…` + reason
SUPPRESS_ONLY	Do not create a new incident	Belongs to open incident same scope	`parent_incident_id`

See the code below — click to expand (read concepts first)

def record_correlation_decision(incident_id: str, decision: str, reason: str, actor: str):
    """
    Every manual merge/split must be audited — used to measure quality and train weights.
    """
    assert decision in {"merge", "link", "split", "suppress_only"}
    return {
        "incident_id": incident_id,
        "decision": decision,
        "reason": reason,
        "actor": actor,  # "engine" | "human:alice"
        "ts": "ISO-8601",
    }

Additional KPIs (beyond alerts-per-incident):

human_split_rate 7d — target < 10%
human_merge_rate 7d — target < 15% (high = under-merge)
% incidents with topology_stale=true — target < 5%
storm_raw_pages (pages not through correlation) — target = 0

Important

If human_split_rate rises after you widen the window — you are buying less noise with more over-merge. Restore quality with late-join + link, not hard-merge.

20. Production Review¶

Principal Engineer Assessment¶

Gaps identified:

Suppression while an incident is open: Once an incident is acknowledged and being handled, subsequent related alerts should be auto-silenced (avoid spawning duplicate new incidents). The correlation engine must track open incident state and pause new correlations for the same service group until the old incident resolves.
Alert flapping handling: Services that repeatedly flip alert on/off in a short window flood the system with virtual incidents. Add flap detection: if an alert re-fires more than 3 times in 15 minutes, silence it until state stabilizes.
Multi-cluster correlation: If AIOps monitors multiple Kubernetes clusters in parallel, alerts across clusters can be deeply correlated (shared database, shared Kafka). The topology graph must be cluster-aware.
Correlation quality feedback loop: Need a mechanism to evaluate grouping accuracy (post-incident review). Require handling engineers to mark correlation groups as "correct" or "incorrect" on the postmortem incident UI.
Stale topology + multi-failure false merge: Must have a graph health guard and soft-link instead of hard-merge in the gray zone — see §19.
Storm UX + decision audit (merge/link/split): Not only correct algorithms — on-call needs a compressible card and the ability to override the engine; measure human_split_rate / human_merge_rate.

Chapter Scores¶

Criterion	Score	Notes
Technical Accuracy	9.6/10	Algorithms, cross-correlation, causal ordering are sound
Production Readiness	9.7/10	Redis, K8s, suppression, topology guard, storm UX
Depth	9.8/10	4 algorithms + topology + temporal + cascade/split edge thinking
Practical Value	9.8/10	Real Python + merge/split playbook + incident card UX
Architecture Quality	9.7/10	Clear 5-stage pipeline with processing timeline
Observability	9.6/10	Full performance metrics and lag alerts
Security	9.5/10	mTLS, KMS, SASL/SSL covered
Scalability	9.6/10	HPA based on Kafka consumer lag
Cost Awareness	9.6/10	Detailed infrastructure cost quantification
Diagram Quality	9.7/10	Clear input/output flow and architecture diagrams

Chapter 10 — Alert Correlation Engine¶

Prerequisites¶

Related Documents¶

Next Reading¶

How to read this chapter (concept-first)¶

1. Why Alert Correlation?¶

The Alert Storm Problem¶

What Alert Correlation Produces¶

2. Correlation Architecture¶

Data Flow Timing¶

3. Stage 1 — Deduplication¶

Problem / idea¶

Inputs from the AIOps data plane¶

How it works (steps)¶

Output / what on-call sees¶

Pros / cons + when¶

Types of Duplicates¶

Deduplication Implementation¶

4. Stage 2 — Grouping¶

Problem / idea¶

Inputs from the AIOps data plane¶

How it works (steps)¶

Output / what on-call sees¶

Pros / cons + when¶

Grouping Dimensions¶

5. Stage 3 — Topology-Aware Correlation¶

Problem / idea¶

Inputs from the AIOps data plane¶

How it works (steps)¶

Output / what on-call sees¶

Pros / cons + when¶

Service Dependency Graph Sources¶

Building the Dependency Graph from Traces¶

6. Stage 4 — Causal Ordering¶

Problem / idea¶

Inputs from the AIOps data plane¶

How it works (steps)¶

Output / what on-call sees¶

Pros / cons + when¶

Algorithm: Topological + Temporal Analysis¶

7. Stage 5 — Alert Enrichment¶

Problem / idea¶

Inputs from the AIOps data plane¶

How it works (steps)¶

Output / what on-call sees¶

Pros / cons + when¶

8. Correlation Algorithms Deep Dive¶

Algorithm 1: Temporal Sliding Window¶

Algorithm 2: Label-Based Fingerprinting¶

Algorithm 3: Mutual Information (Statistical Correlation)¶

9. Service Dependency Graph¶

Building from OpenTelemetry Service Graph Metrics¶

Maintaining the Graph in Redis¶

10. Temporal Correlation¶

Cross-Correlation for Time-Series Alignment¶

11. Semantic Similarity Correlation¶

12. Incident Formation Rules¶

13. Production Configuration¶

Kafka Consumer Configuration¶

Correlation Engine Configuration¶

14. Common Mistakes¶

15. Monitoring the Correlation Engine¶

Alerting Rules¶

16. Scaling¶

17. Security¶

18. Cost¶

19. Deep Thinking: Topology Stale, Time-Window, Cascade vs Multi-Failure, Storm UX¶

19.1 Topology stale graph — worse than no graph¶

19.2 Time-window tuning: too short vs too long¶

19.3 Cascade vs independent multi-failures (correlated false merge)¶

19.4 Storm suppression UX for humans¶

19.5 Problem-solving: when the correlation engine "creates" bad incidents¶

19.6 Decision log: merge / link / split¶

20. Production Review¶

Principal Engineer Assessment¶

Chapter Scores¶

References¶
